Magnetic sweeper / Magnetic plate

Magnetic sweeper / Magnetic plate|Bunri is a specialized manufacturer of equipment that separates and discharges sludge and chips from grinding and cutting

Magnetic sweeper SW
Powerful magnetic sweeper MSW
Magnetic plate PL

Magnet application equipment that collects cut ting chips and grinding sludge from magnetic materials.
Optimum for cleaning insides of coolant tanks and places that are out of reach.

Features

PL

  • Available to remove cutting chips and grinding sludge from the coolant tank and hydraulic tank.
  • This unit can be installed either horizontally or vertically.

SW

  • Suitable for cleaning the inside of the coolant tank and places that are out of reach.

MSW

  • Compact and high magnetic force type compared to SW.
  • Optimum for cleaning magnetic chips and sludge in narrow spaces such as the T-groove of the machine table.
Coolant Water soluble Oil-based
Category Magnetic material
Processing details Grinding Cutting
Work material FC/FCD Steel Carbide
Chip shape Sandy Cottony Granular Needle-shaped Small curl-shaped (50 mm or less) Small curl-shaped (51 mm to 100 mm)
Grinding chip size Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm)
Machine tool Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center #30 Machining center Broaching machine NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Dimensional drawing and dimension table

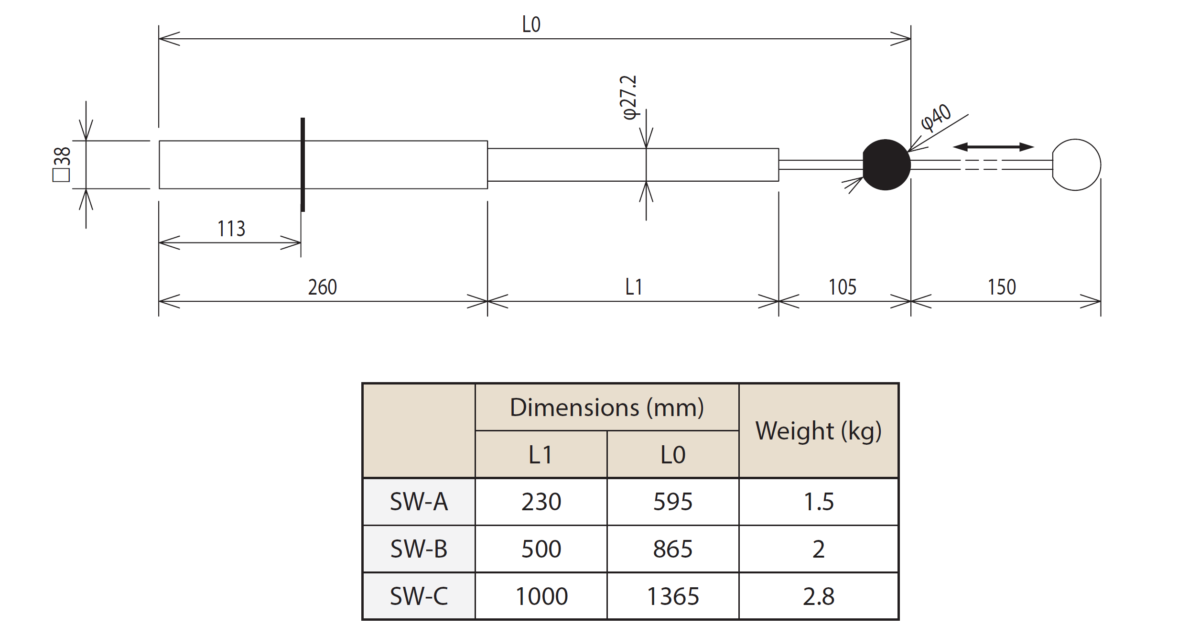

SW

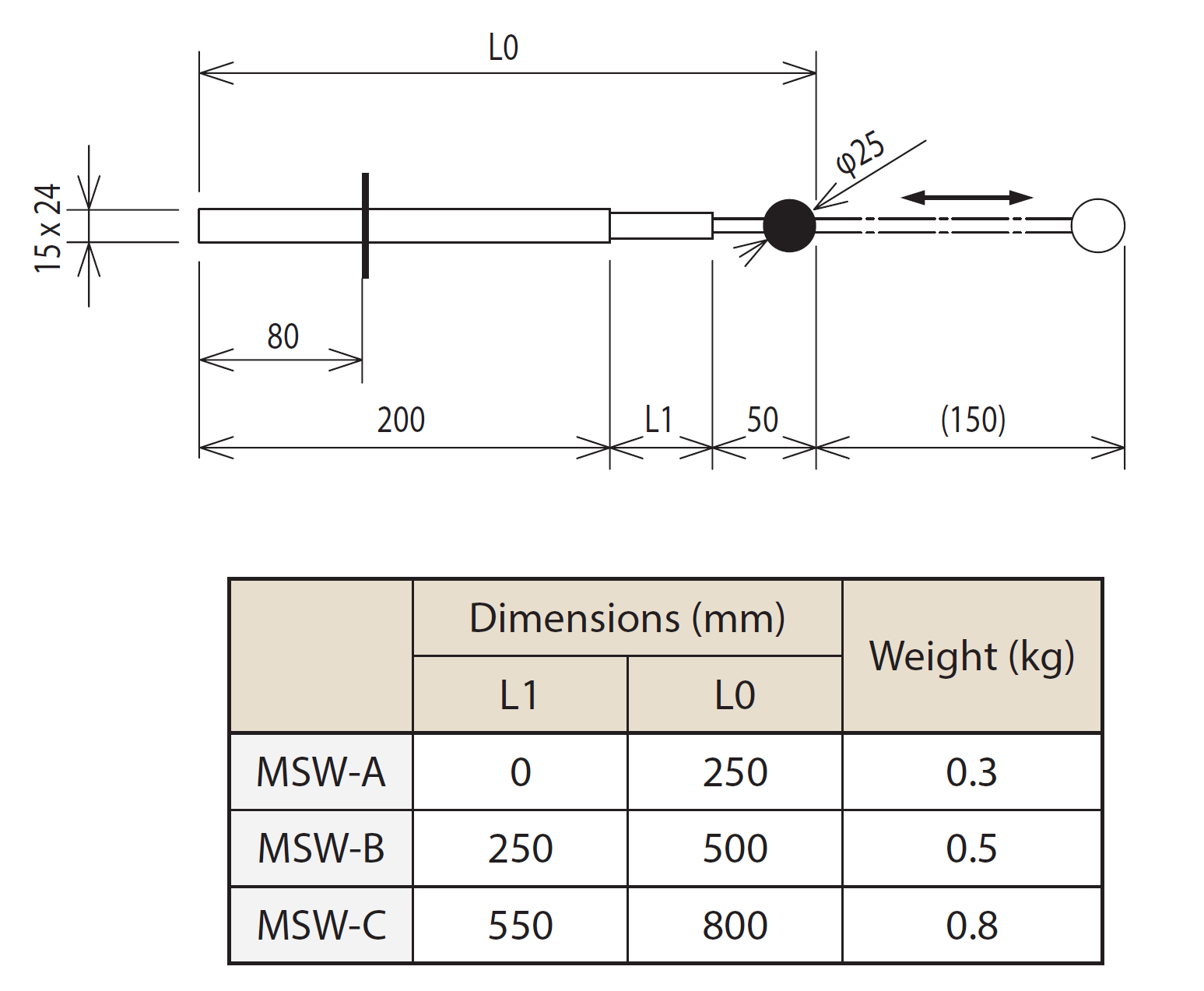

MSW

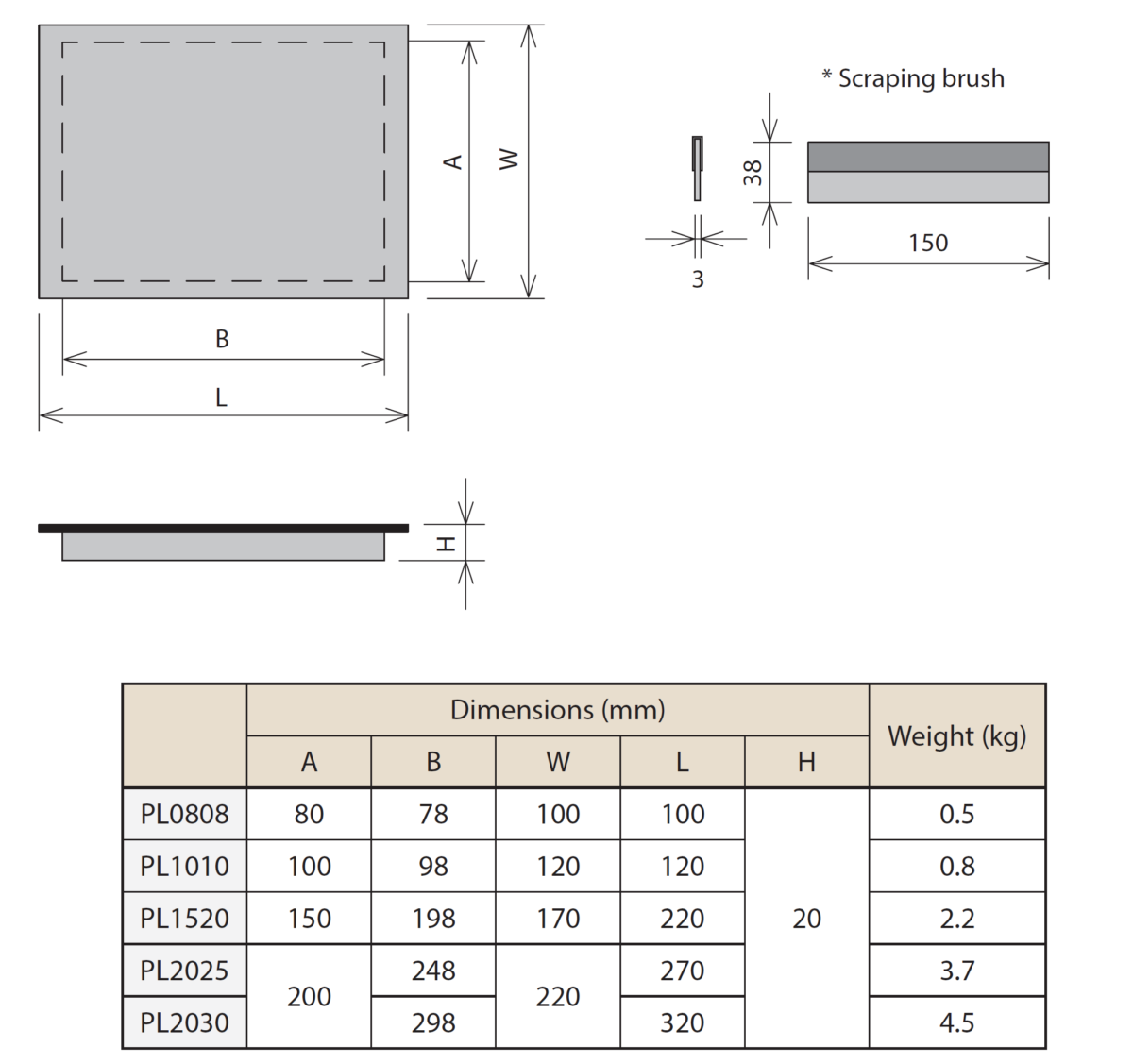

PL

* The specifications and dimensions are subject to change without notice.

Specifications

Product weight

  • SW-A 1.5kg
  • SW-B 2.0kg
  • SW-C 2.8kg



  • MSW-A 0.3kg
  • MSW-B 0.5kg
  • MSW-C 0.8kg



  • PL0808 0.5kg
  • PL1010 0.8kg
  • PL1520 2.2kg
  • PL2025 3.7kg
  • PL2030 4.5kg

Paint color

  • SW Silver gray (Munsell No. N-8.0)
  • MSW Silver gray (Munsell No. N-8.0)
  • PL Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Product Photo (Example)

SW

MSW

PL

Chip (sludge) recovery image

SW・MSW

SW・MSW

PL

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

* The specifications and dimensions are subject to change without notice.

* For information about custom products other than standard products, please consult us.
