Rolling filter conveyor AL
Rolling filter conveyor ALL
#30 Rolling filter conveyor SKA

Conveyor with punching filter that does not require backwashing.
The filter is automatically cleaned, reducing maintenance load.
Optimum for cutting chip processing of non-magnetic materials.

Features

  • The punching filter captures cutting chips.
  • The punching filter is always in contact with the scraping board and rotates to prevent clogging.
  • No backwashing is required, so no mist is generated, which helps improve the environment in the factory.
  • The chip discharge port of the conveyor has a structure that drains liquid, which ensures that chips are drained before being discharged.This processing reduces the load to carry out coolant (means that coolant is discharged together with chips).
  • This product does not use any consumables such as cartridge filters or paper filters, so no industrial waste is generated.
Coolant Water soluble Oil-based
Category Non-magnetic material
Processing details Cutting
Work material Aluminum Stainless Copper Titanium Magnesium Mixed chips (aluminum + FC or sintered metal)
Chip shape Granular Small curl-shaped (50 mm or less) Small curl-shaped (51 mm to 100 mm)
Grinding chip size
Machine tool Machining center #30 Machining center Broaching machine NC lathes Automation machine Gear cutting machine Gun drill machine Cutting specialized machine

Product introduction video

AL

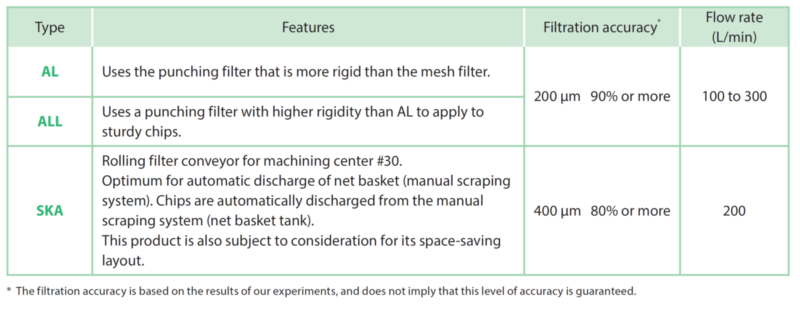

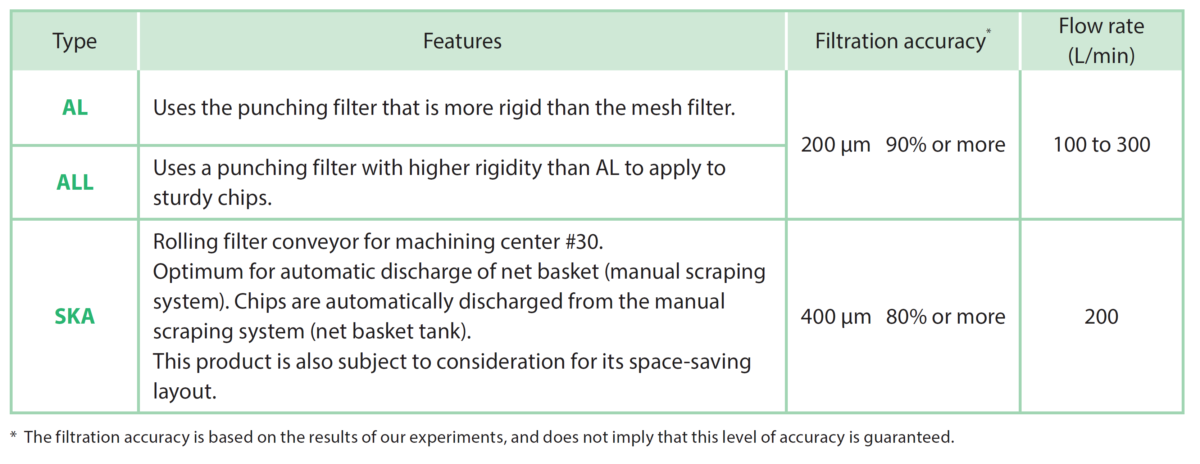

Features of 3 Type

AL

  • Uses the punching filter that is more rigid than the mesh filter.

ALL

  • Uses a punching filter with higher rigidity than AL to apply to sturdy chips.

SKA

  • Rolling filter conveyor for machining center #30.
  • Optimum for automatic discharge of net basket (manual scraping system).Chips are automatically discharged from the manual scraping system (net basket tank).
  • This product is also subject to consideration for its space-saving layout.

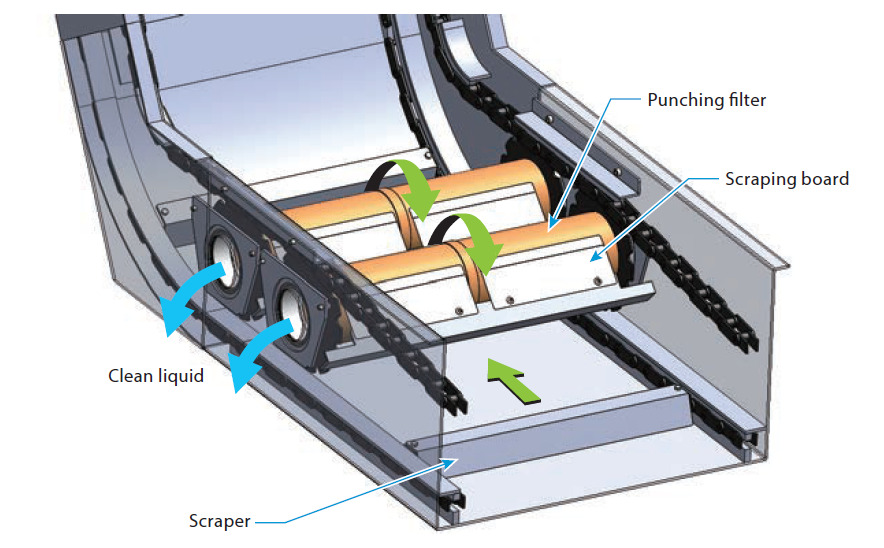

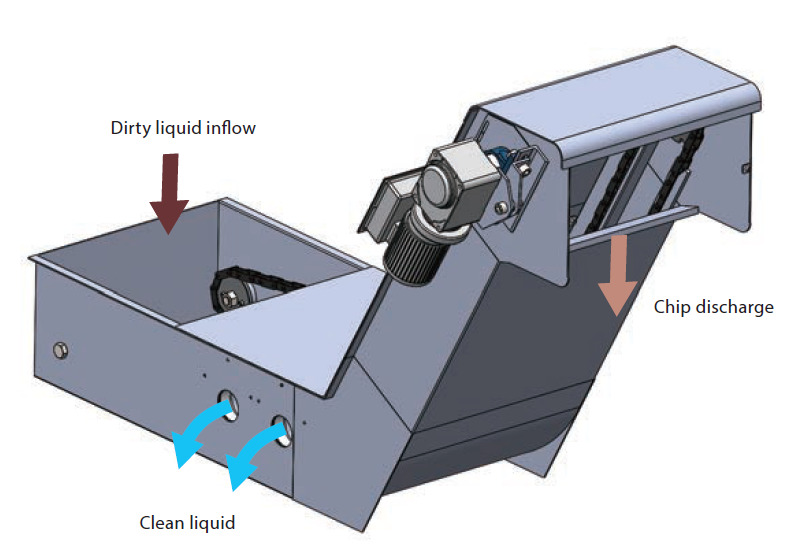

Mechanism

  1. The dirty liquid flows onto the conveyor.
  2. The dirty liquid is filtered as it passes through the rotating punching filter, and the clean liquid is sent from the inside of the punching filter to the outside of the main body.
  3. Chips captured in the punching filter are scraped off by the scraping board and settle on the bottom of the conveyor.
  4. Chips that have settled on the bottom of the conveyor are conveyed by the scraper.
  5. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

AL・ALL

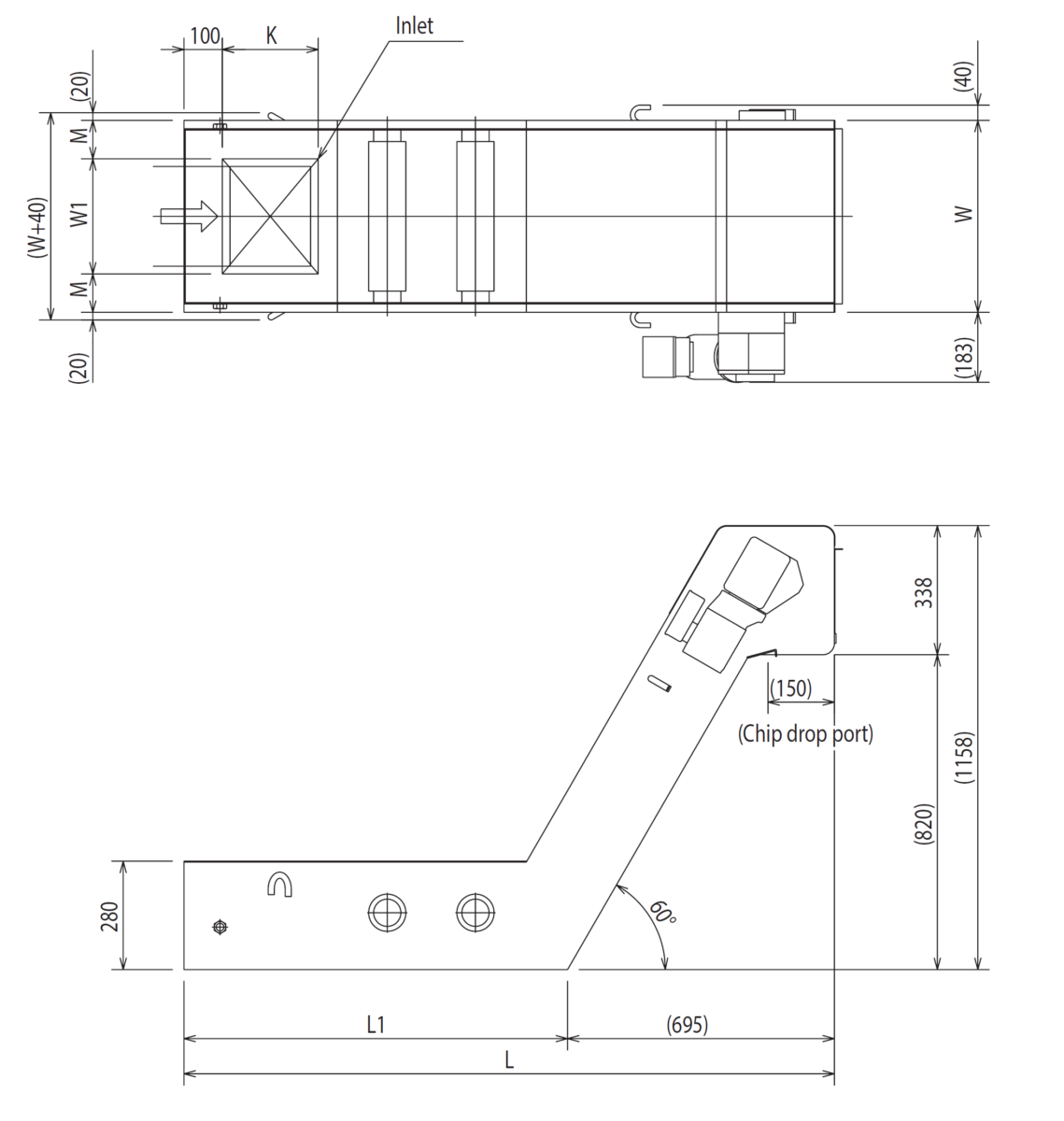

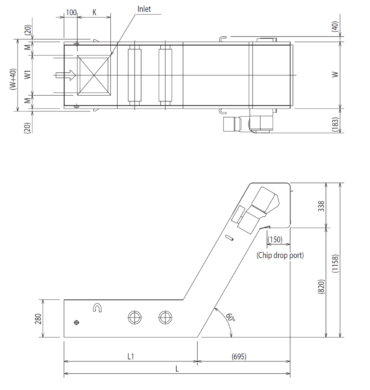

Dimensional drawing

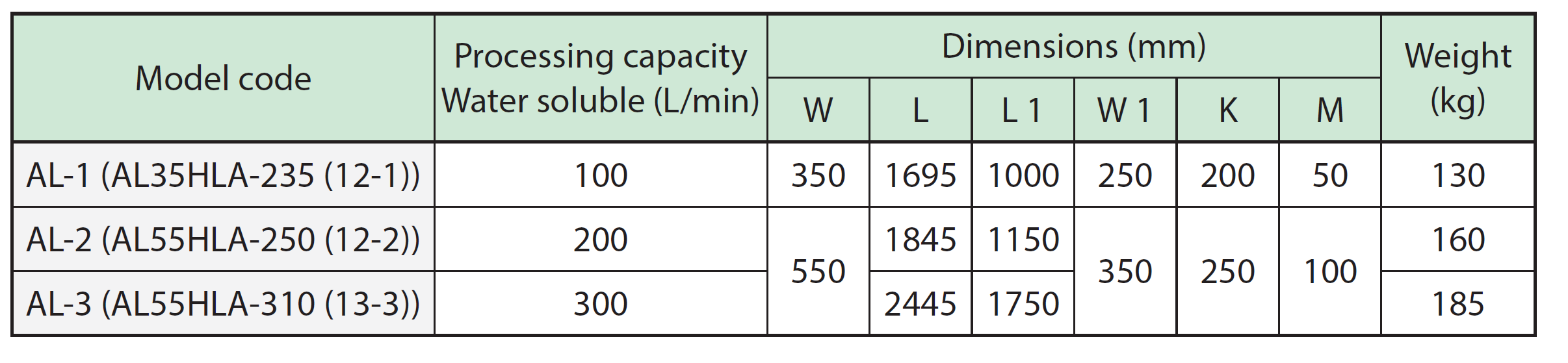

Dimension table

SKA

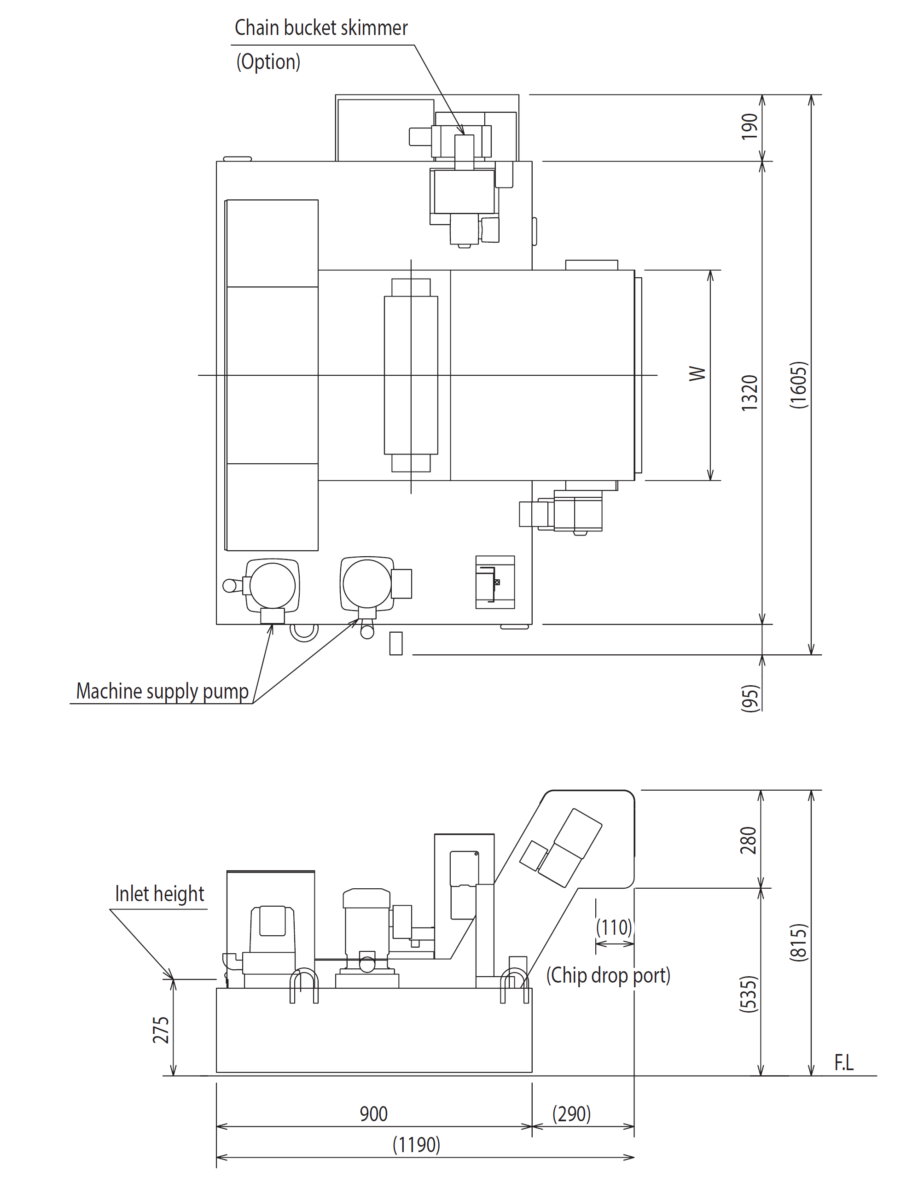

Dimensional drawing

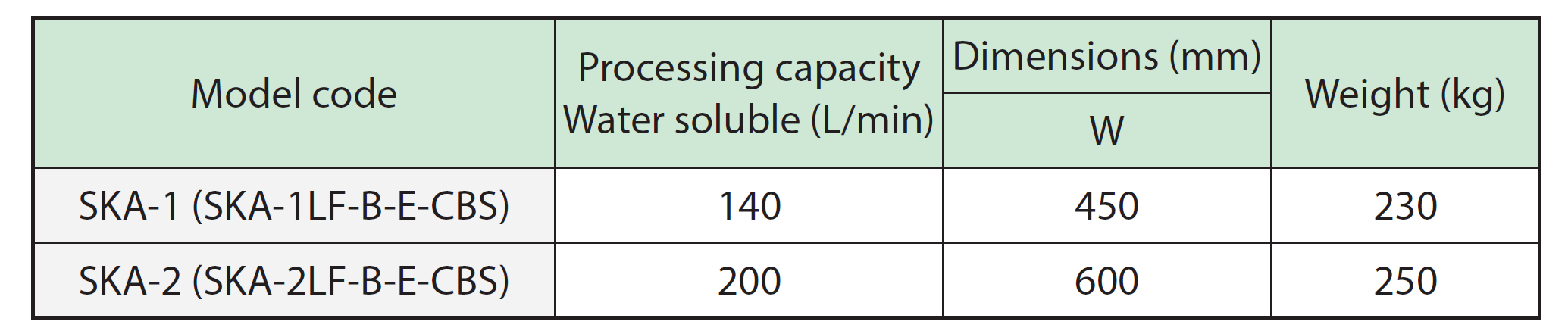

Dimension table

Filtration accuracy

  • AL 200μm 90% or more
  • ALL 200μm 90% or more
  • SKA 400μm 80% or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

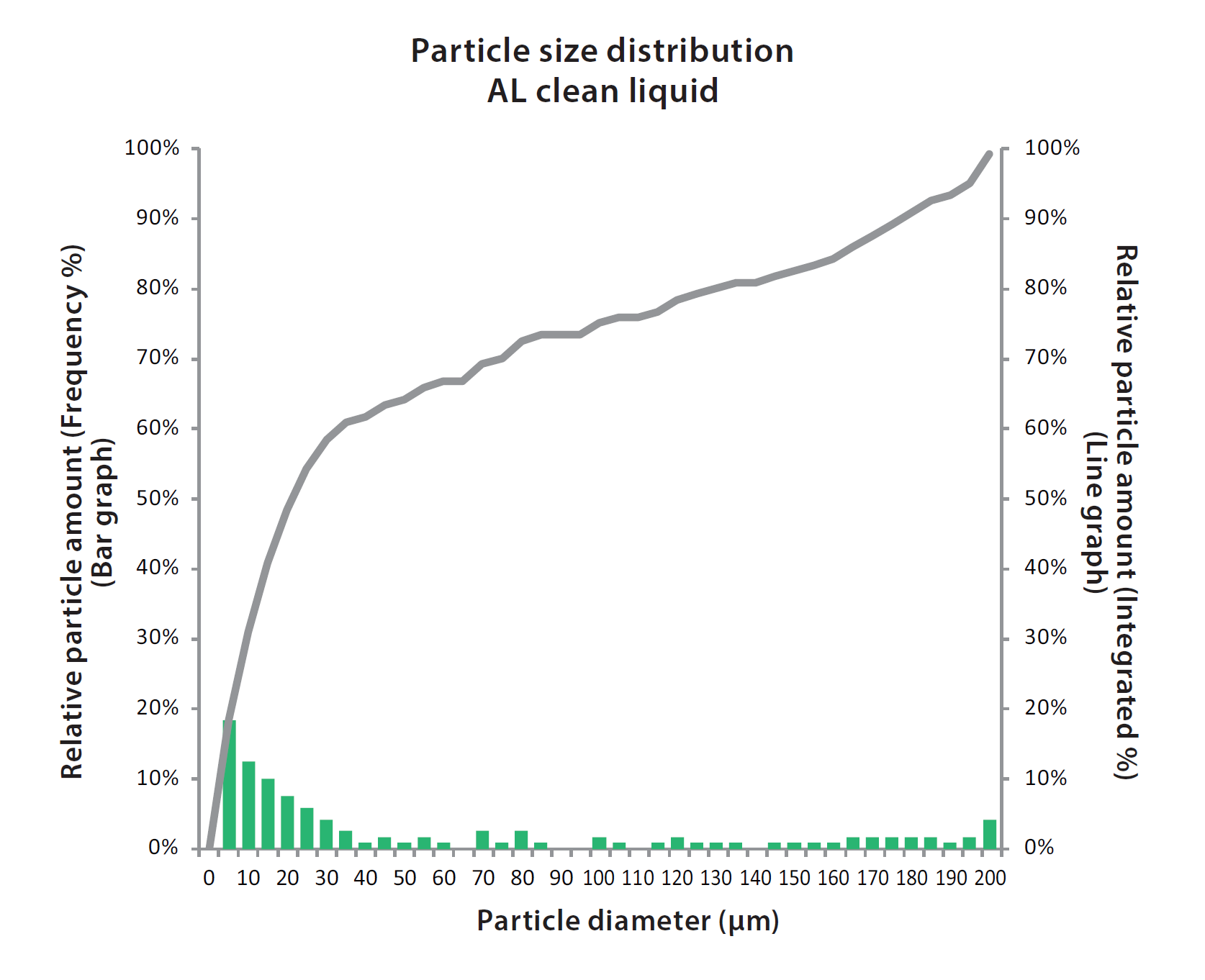

Sludge distribution status

AL

Machine tool: Machining center
Coolant: Water soluble
Processing flow rate: 700 L/min
Chip material: Aluminum

Processing flow rate

Water soluble

  • AL-1(AL35HLA-235(12-1)) 100L/min
  • AL-2(AL55HLA-250(12-2)) 200L/min
  • AL-3(AL55HLA-310(13-3)) 300L/min



  • SKA-2(SKA-2LF-B-E-CBS) 200L/min

Product weight

  • AL-1(AL35HLA-235(12-1)) 130kg
  • AL-2(AL55HLA-250(12-2)) 160kg
  • AL-3(AL55HLA-310(13-3)) 185kg



  • SKA-2(SKA-2LF-B-E-CBS) 250kg

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Geared motor

  • AL 100W
  • SKA 25W

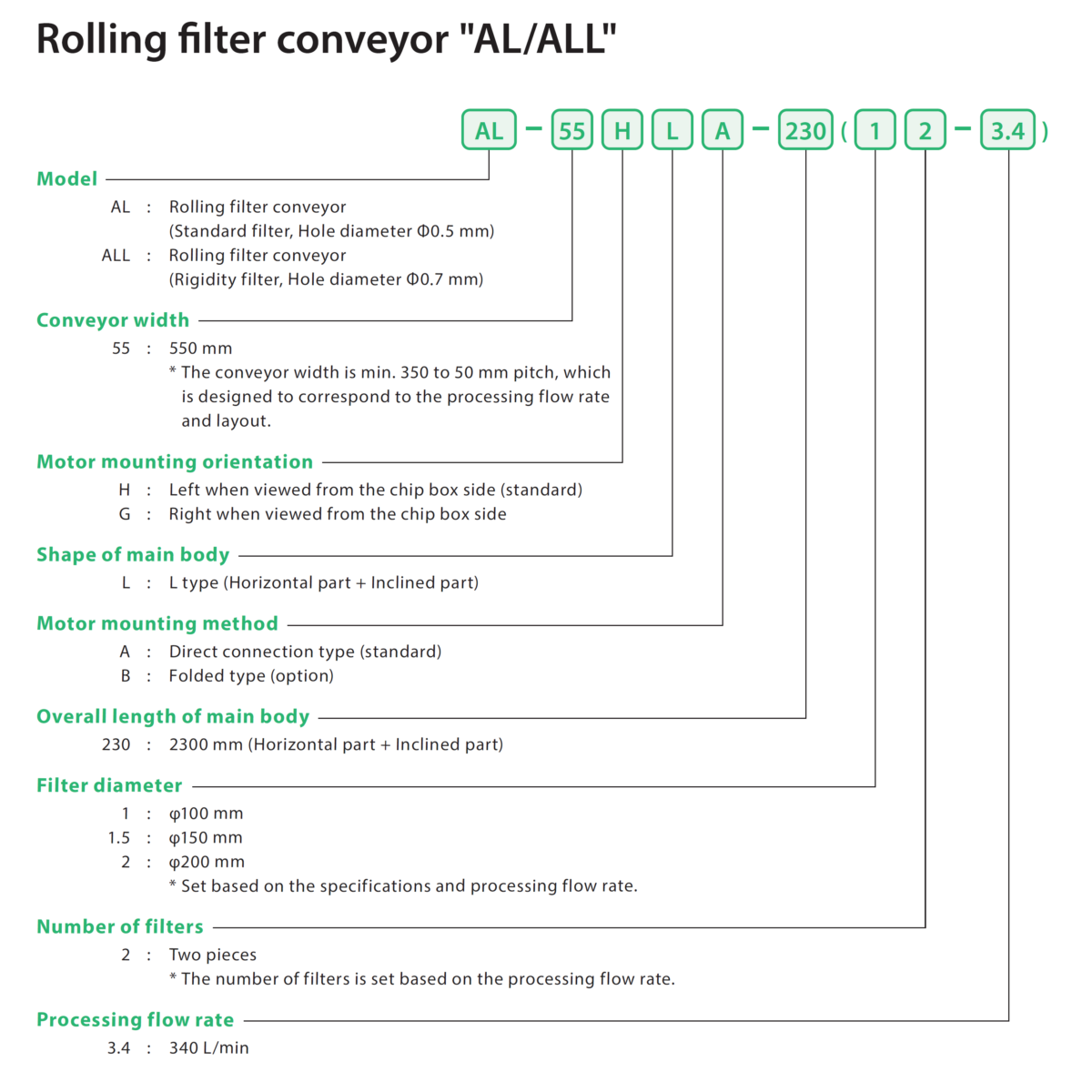

Model code

AL・ALL

* For SKA, please consult us.

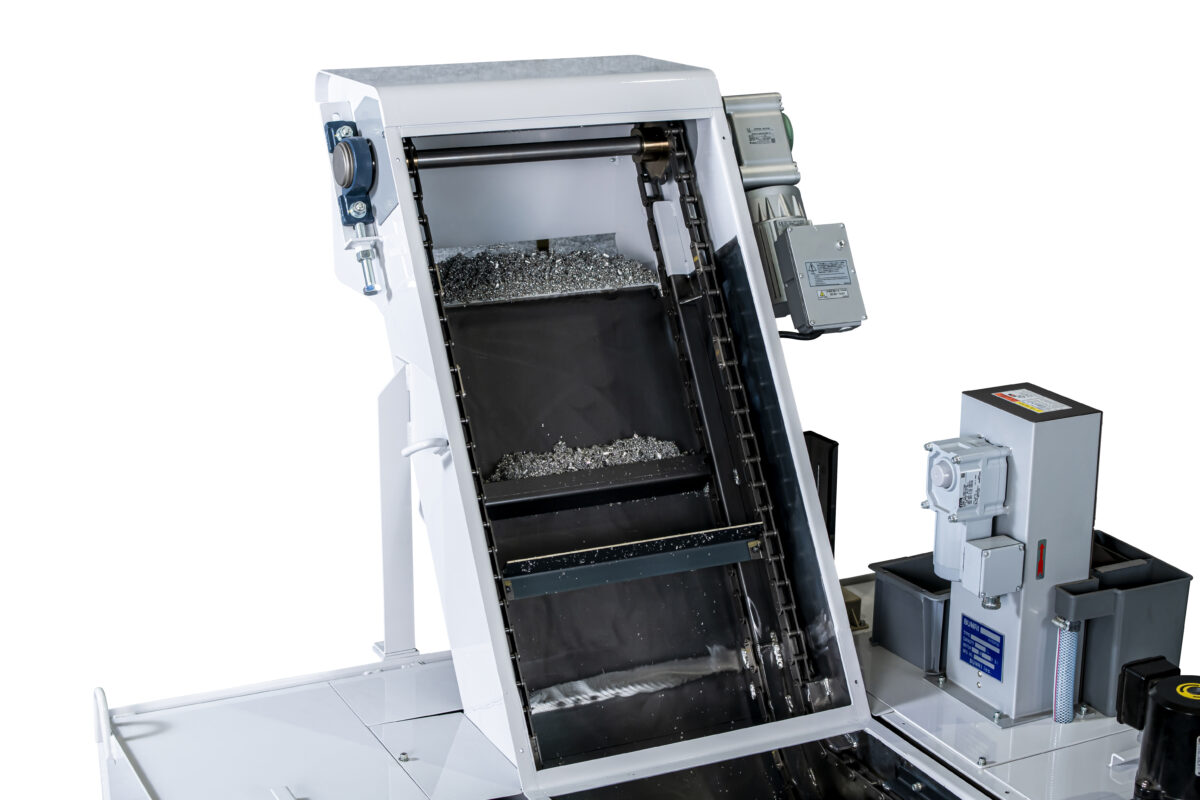

Product Photo (Example)

AL/ALL option (CBS)

SKA option (CBS)

Chip discharge image

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

* The specifications and dimensions are subject to change without notice.

* For the oil-based specifications, please consult us.

* For information about custom products other than standard products, please consult us.
