Chain bucket skimmer

Chain bucket skimmer|Bunri is a specialized manufacturer of equipment that separates and discharges sludge and chips from grinding and cutting

New Products! Chain bucket skimmer CBP
Chain bucket skimmer CBS

CBP
Approximately 1.6 times the amount recovered compared to CBS.
Oil skimmer with unique propeller system.

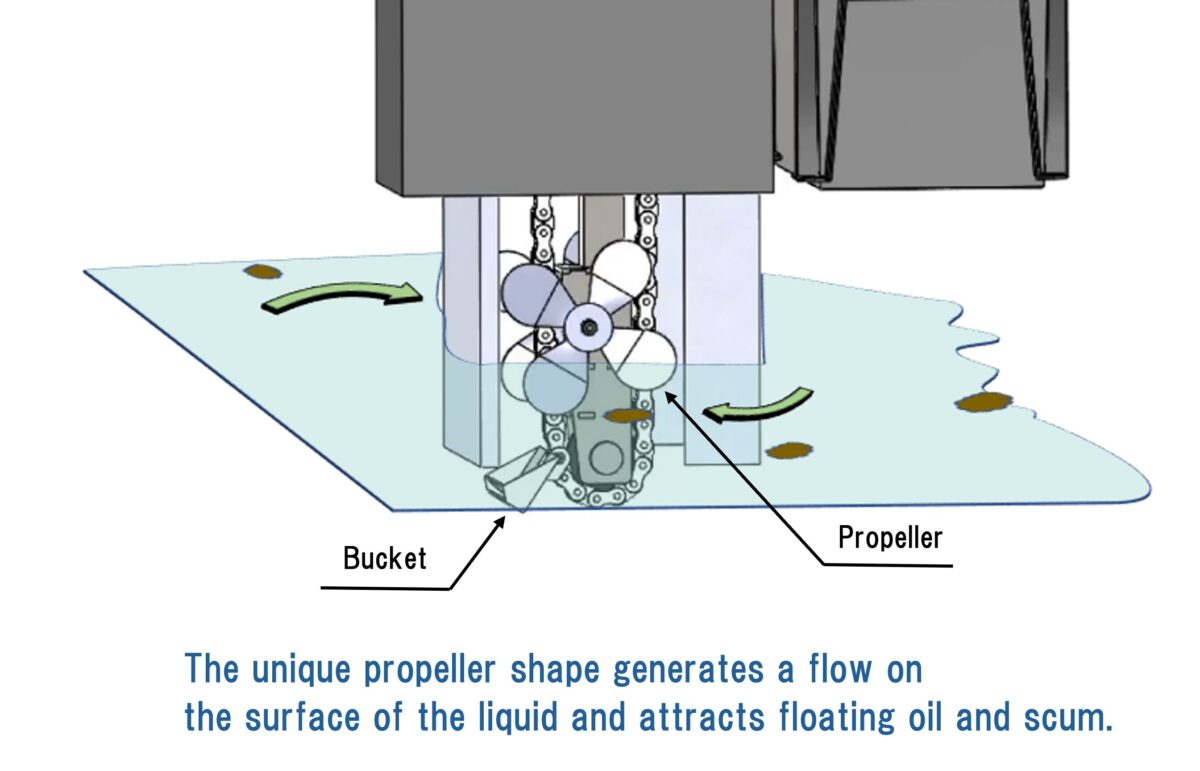

A flow is generated on the surface of the liquid to efficiently attract and collect floating oil and scum.

CBS
Approximately seven times the recovery capacity of the belt type*.
Oil skimmer that uses the unique bucket system.
Optimum for collecting floating oil and scum.
* In-house ratio.

Features

  • It is efficiently collected with a unique bucket shape.
  • Prevents the coolant from spoiling and odor formation.
  • Compared to the belt type, there are fewer consumables and it has excellent durability.
Coolant Water soluble
Category Floating oil, scum
Processing details
Work material
Chip shape
Grinding chip size
Machine tool Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center #30 Machining center Broaching machine NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Product introduction video

Features of 2 Type

CBP

  • It has a collection capacity that is approximately 1.6 times that of CBS*. It is efficiently collected with a unique propeller and bucket shape.
  • Prevents the coolant from spoiling and from formation of odor.
  • It is also effective for low-viscosity levitation oil and liquids heated by cleaning machines.
  • Compared to the belt type, there are fewer consumables and it has excellent durability.

CBS

  • Compared to the belt type, the recovery capacity is about seven times*.
  • Prevents the coolant from spoiling and from formation of odor.
  • The unique bucket shape efficiently recovers levitating oil and scum.
  • It is also effective for low-viscosity flotation oil and liquids heated by cleaning machines.

*The recovery capacity is based on our experimental data and does not guarantee the effect.

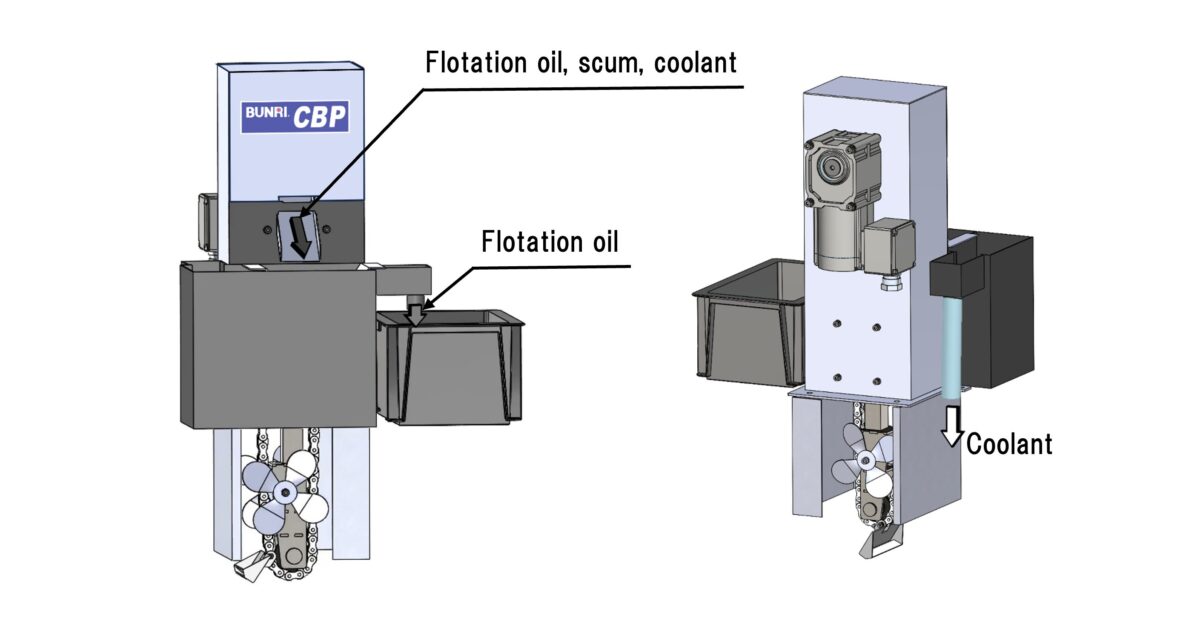

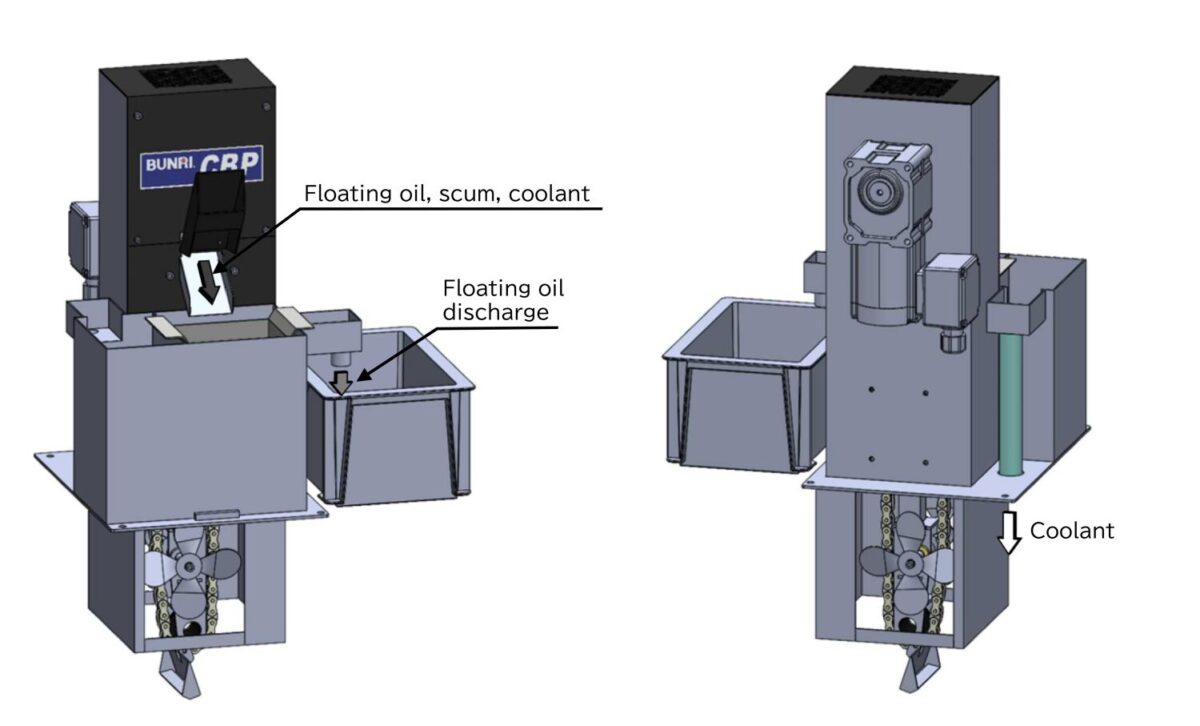

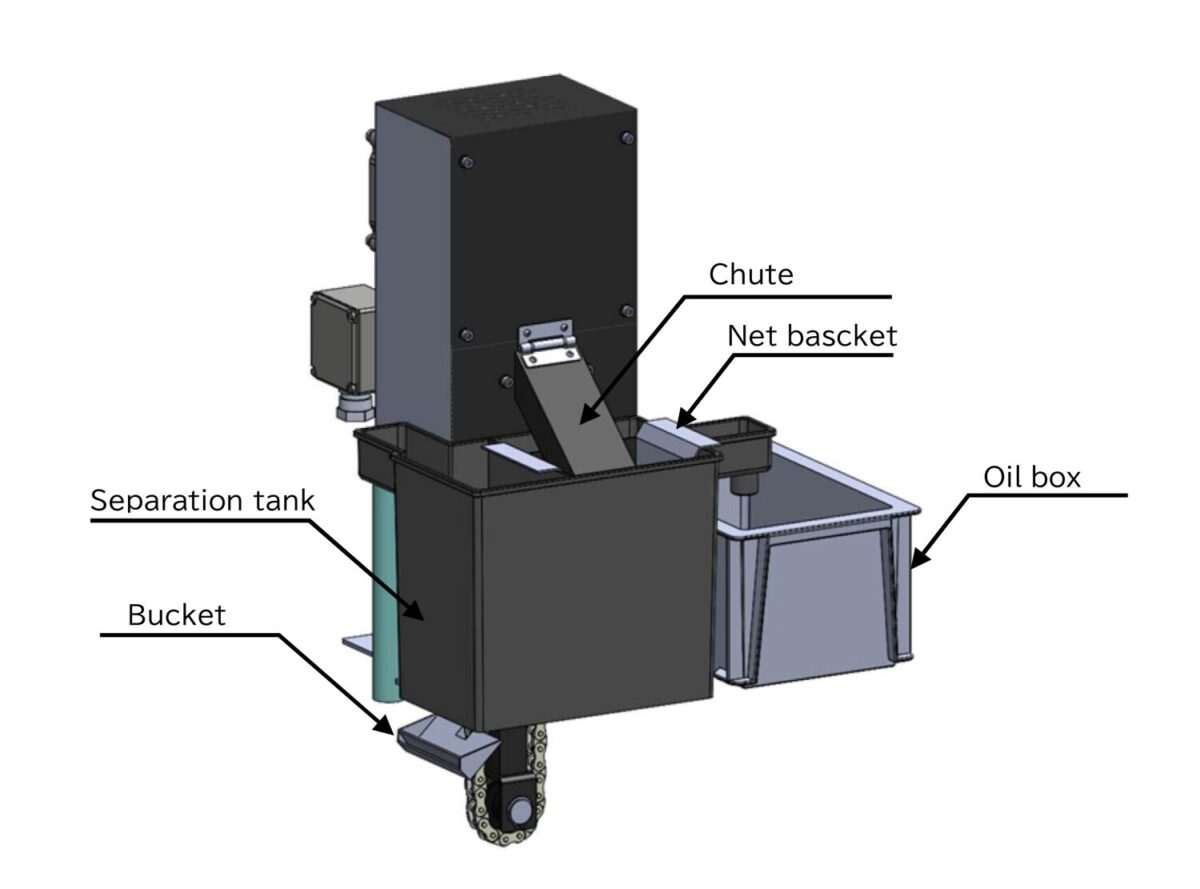

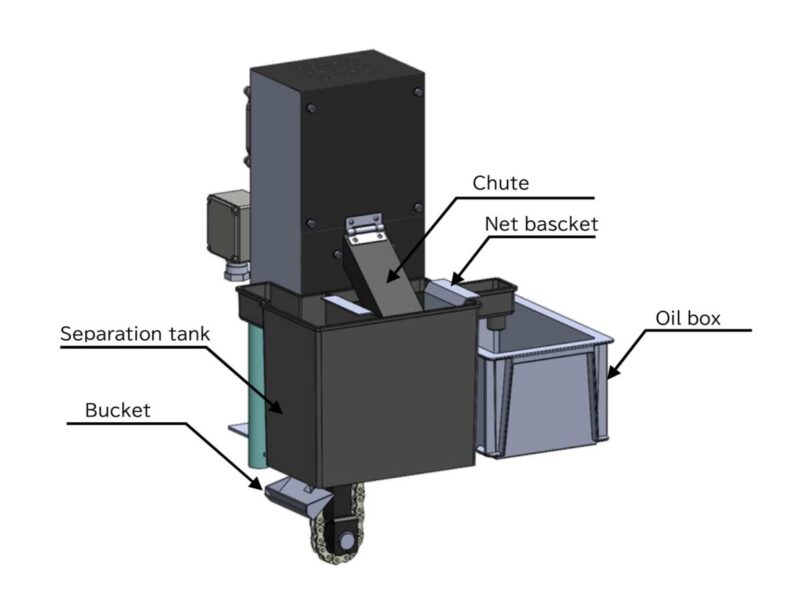

Mechanism CBP

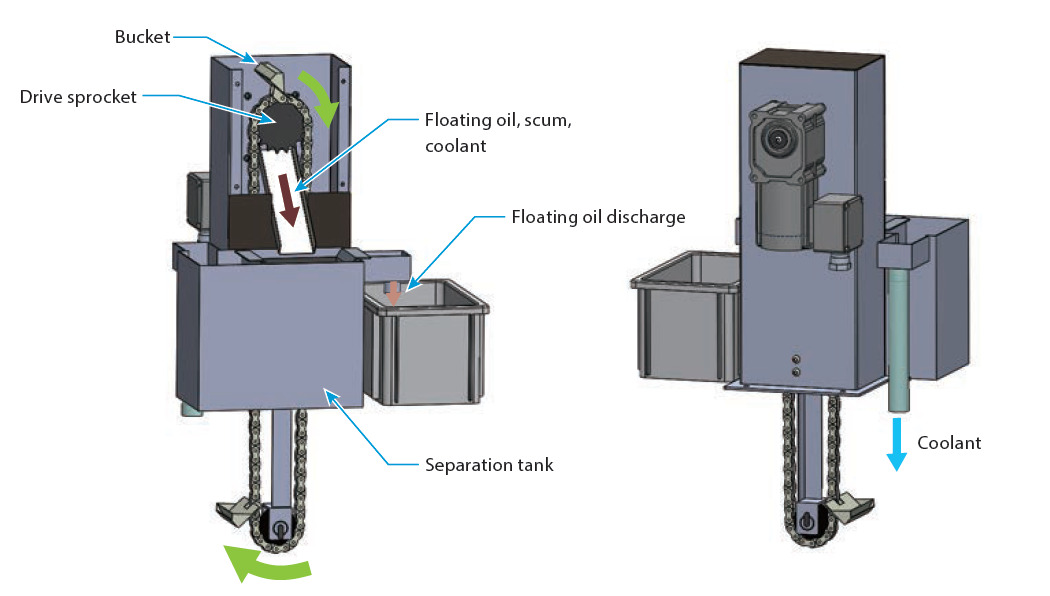

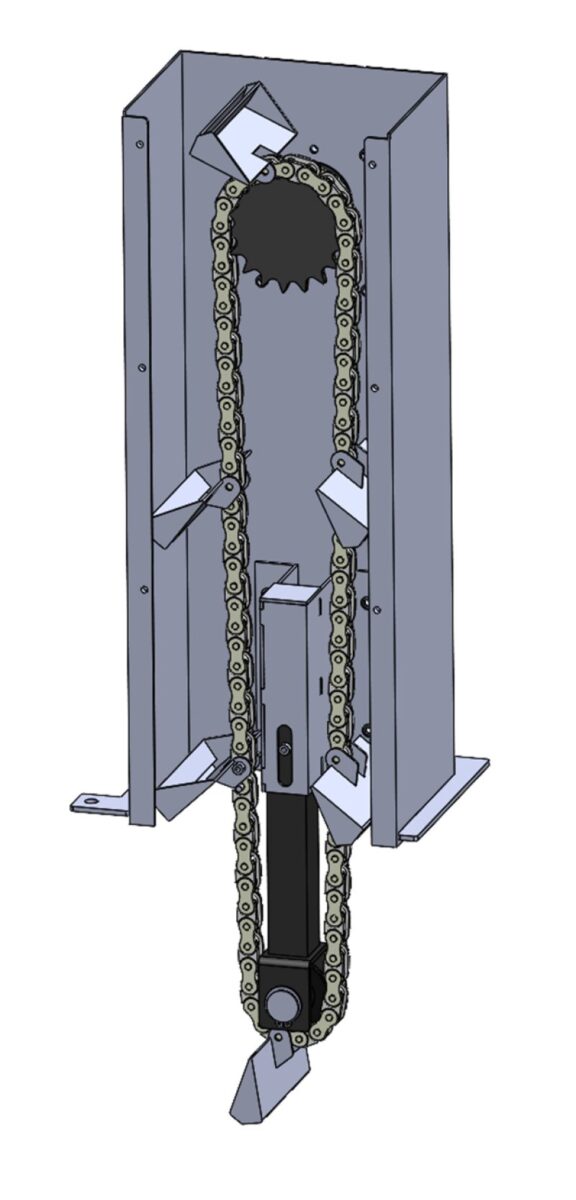

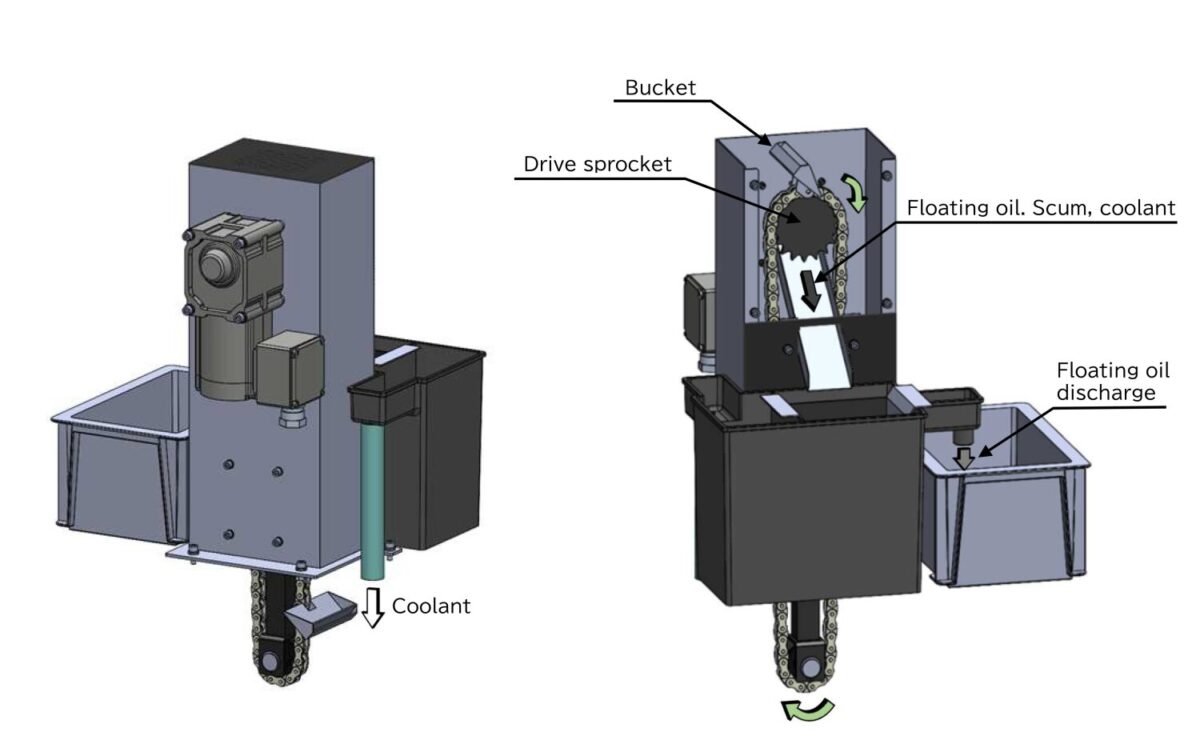

Mechanism CBS

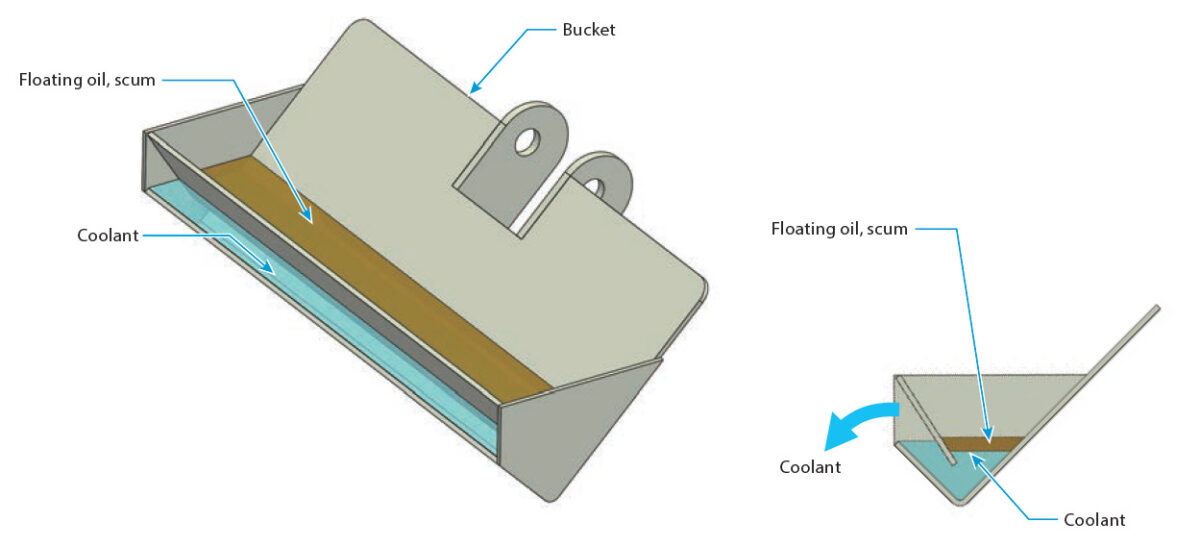

  1. The unique bucket shape collects oil and scum floating on the liquid surface of the coolant.
  2. The collected coolant, oil, and scum are discharged from the chute of the main body to the separation tank.

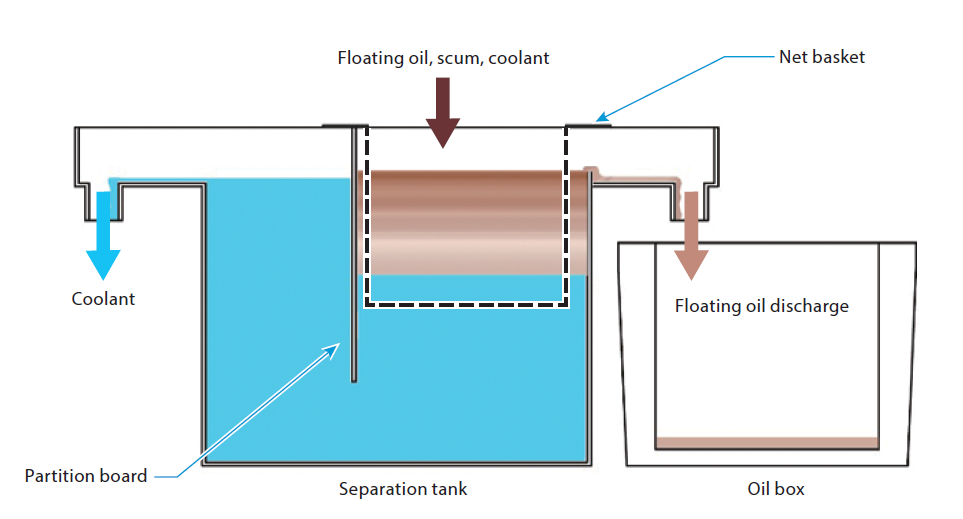

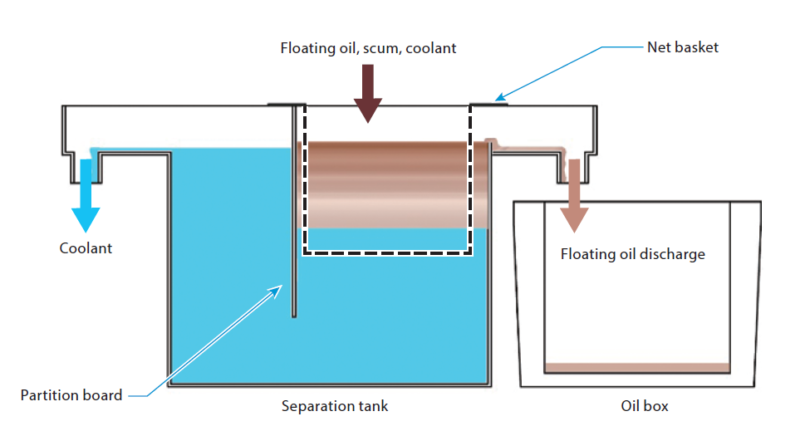

  3. Coolant is separated from scum/oil in the separation tank using the difference in specific gravity between the coolant and scum/oil. Then, the oil is discharged to the oil box, and the coolant is returned to the tank again.

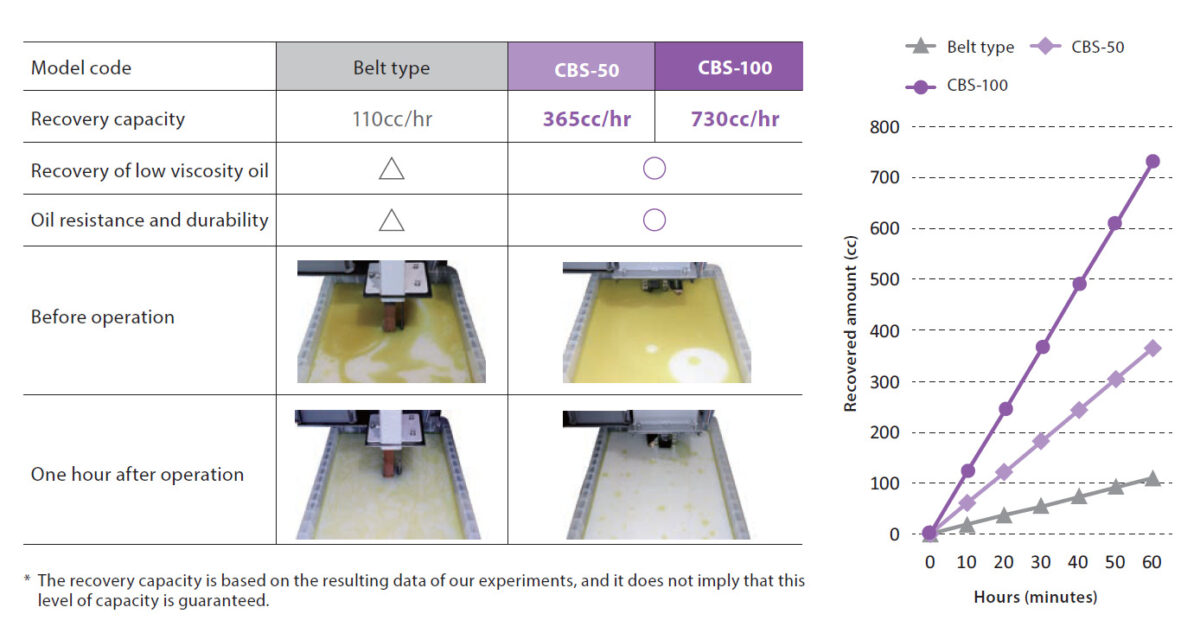

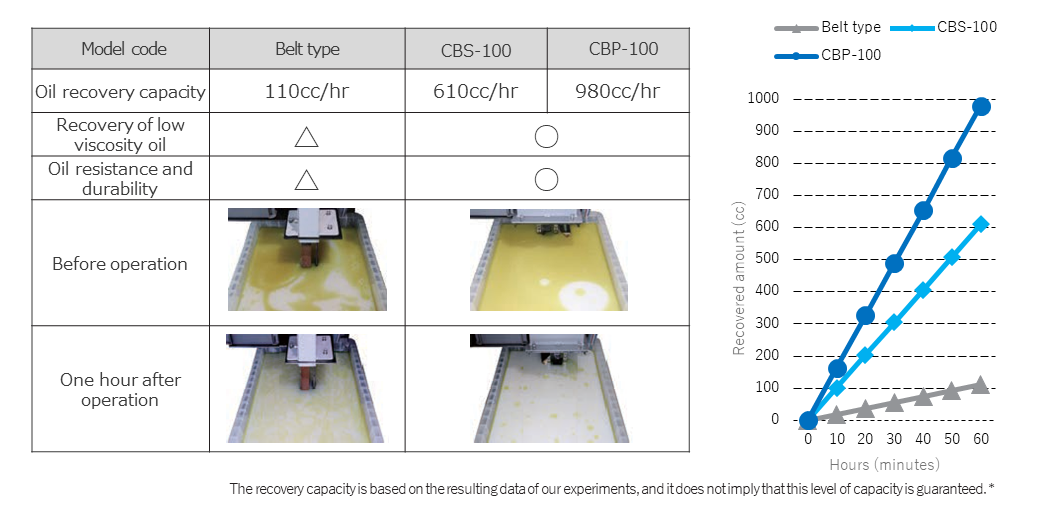

Comparison with belt system

Specifications

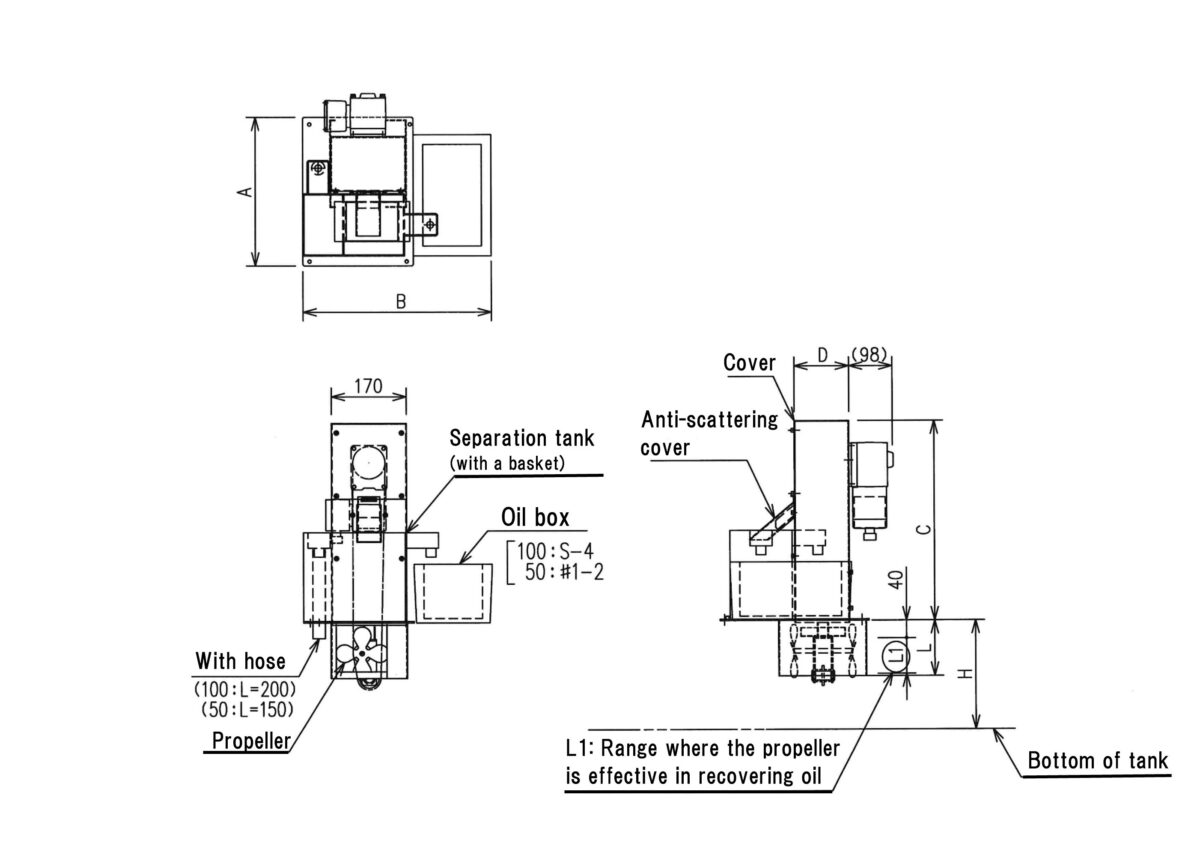

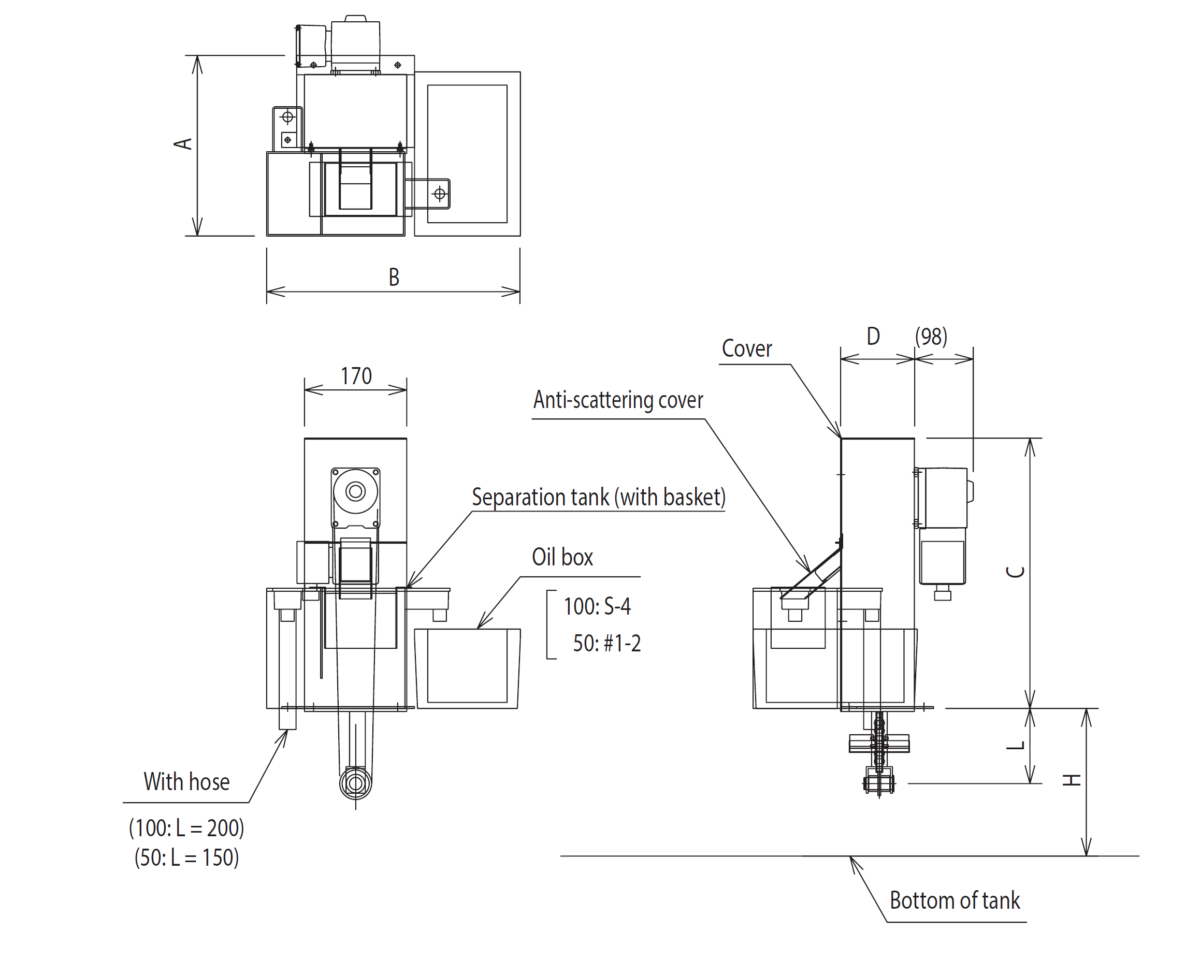

Dimensional drawing CBP-50・CBP-100

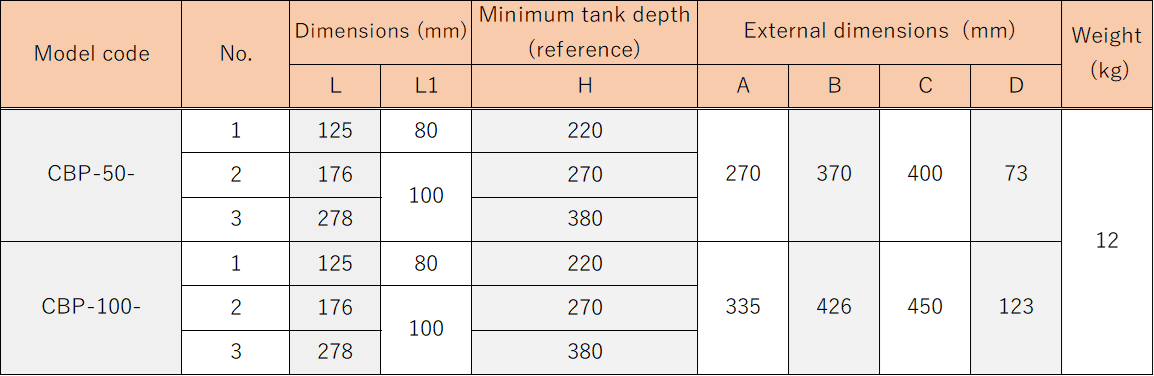

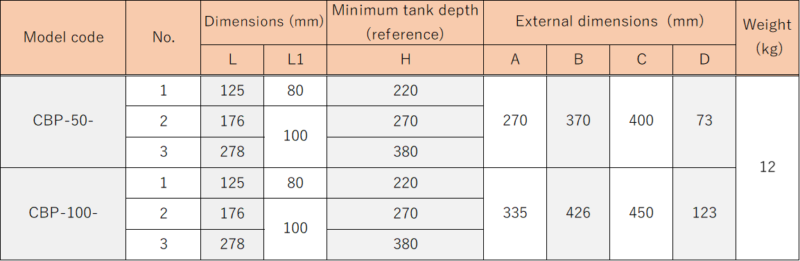

Dimension table CBP

Dimensional drawing CBS-50・CBS-100

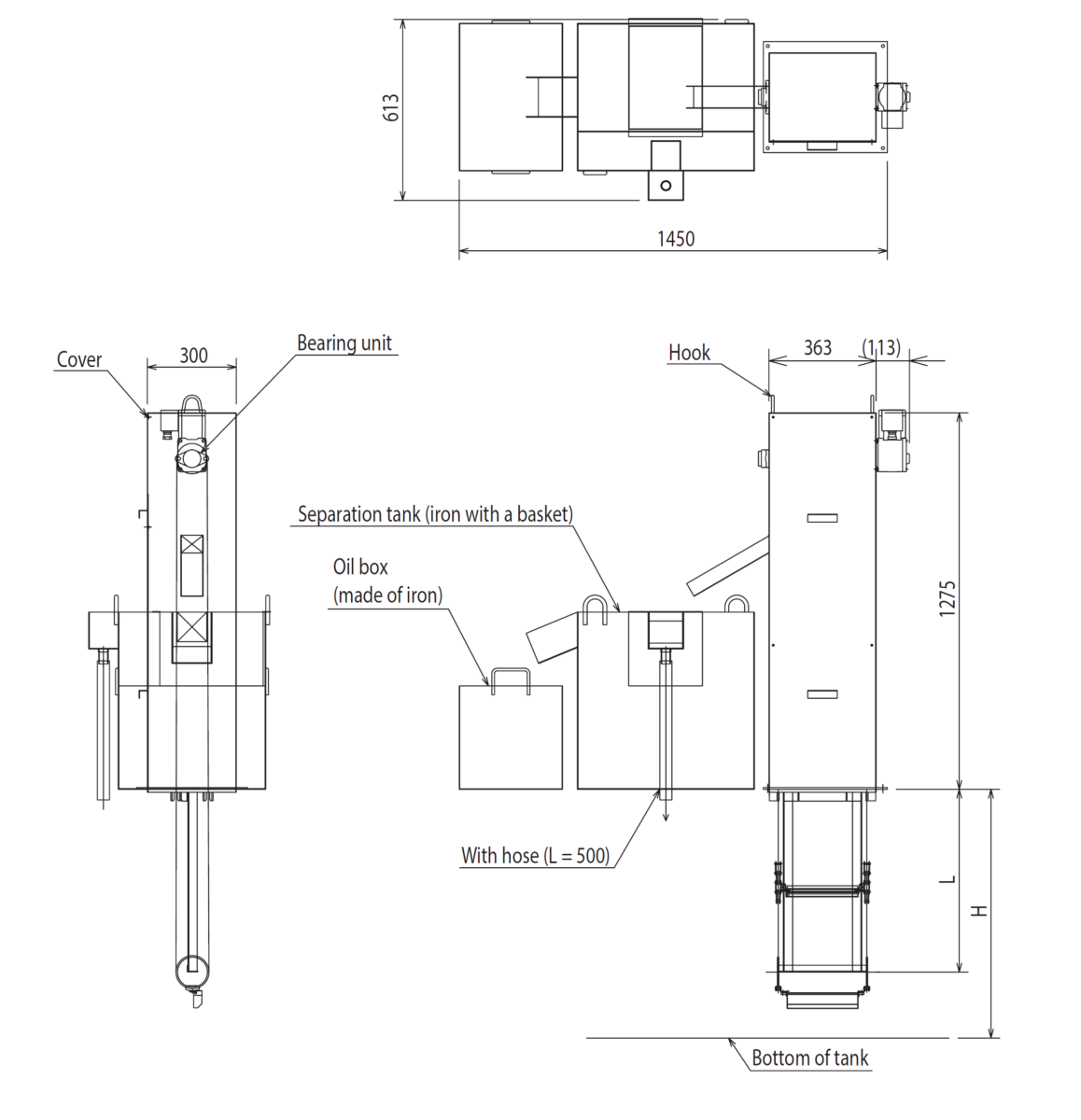

Dimensional drawing CBS-250

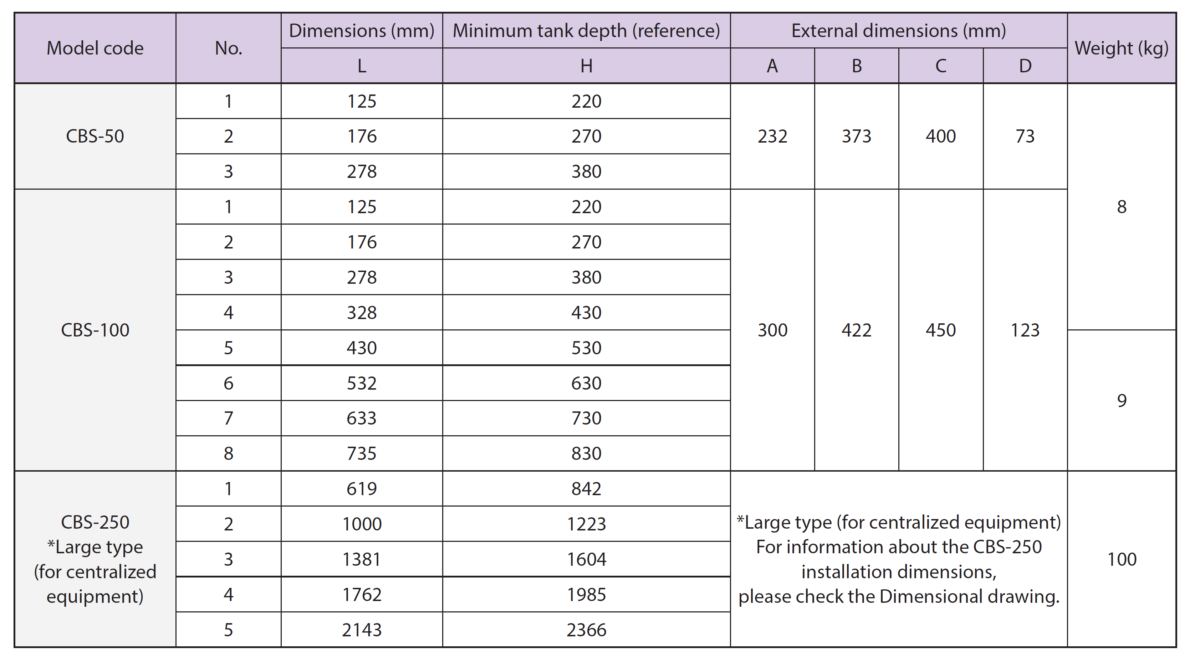

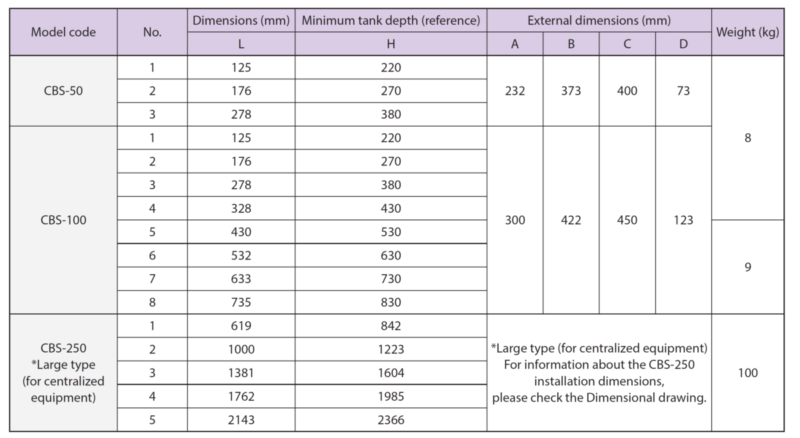

Dimension table CBS

Recovery capacity

  • CBP-50    580cc/hr
  • CBP-100  1160cc/hr



  • CBS-50    365cc/hr
  • CBS-100  730cc/hr
  • CBS-250  2250cc/hr

* The recovery capacity is based on the resulting data of our experiments, and it does not imply that this level of capacity is guaranteed.

Product weight

  • CBP-50-1 to 3   Approx.12kg
  • CBP-100-1 to 3 Approx.12kg



  • CBS-50-1 to 3   Approx. 8 kg
  • CBS-100-1 to 4 Approx. 8 kg
  • CBS-100-5 to 8 Approx. 9 kg
  • CBS-250           Approx. 100 kg

* The product weight varies depending on the specifications, options, etc.

Paint color

CBP-50/CBP-100

  • Main body Medium metallic
  • Cover Dark gray metallic

CBS-50/CBS-100

  • Main body Medium metallic
  • Cover Dark gray metallic

CBS-250

  • Medium metallic

* For information about the specified color, please consult us.

Geared motor

  • CBP-50   15W
  • CBP-100 15W



  • CBS-50   15W
  • CBS-100 15W
  • CBS-250 40W

Option

・Add bucket count

* Please contact us for details.

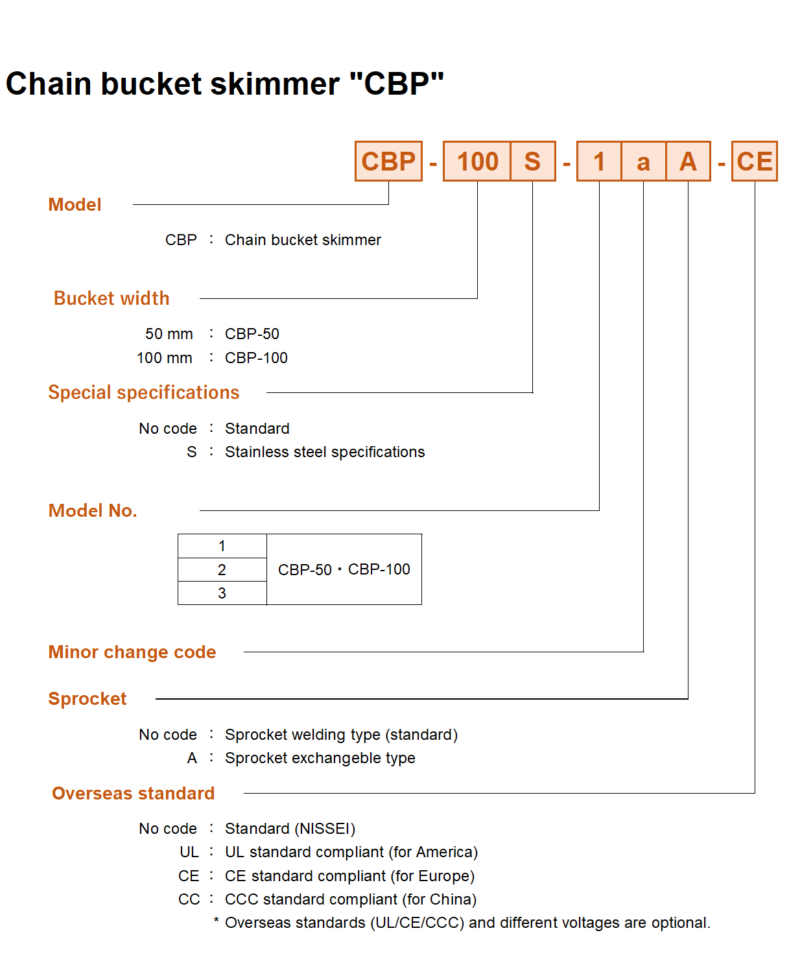

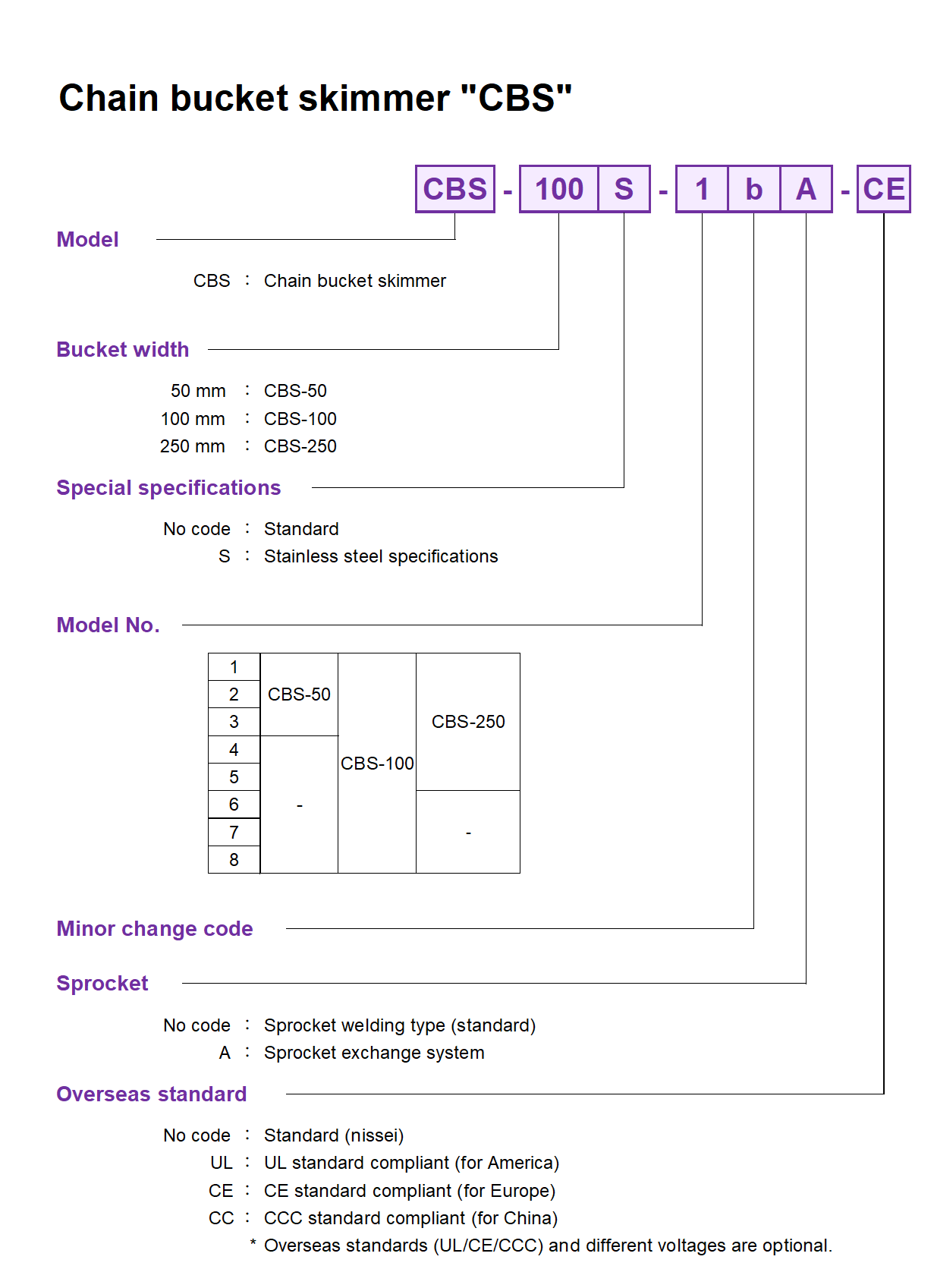

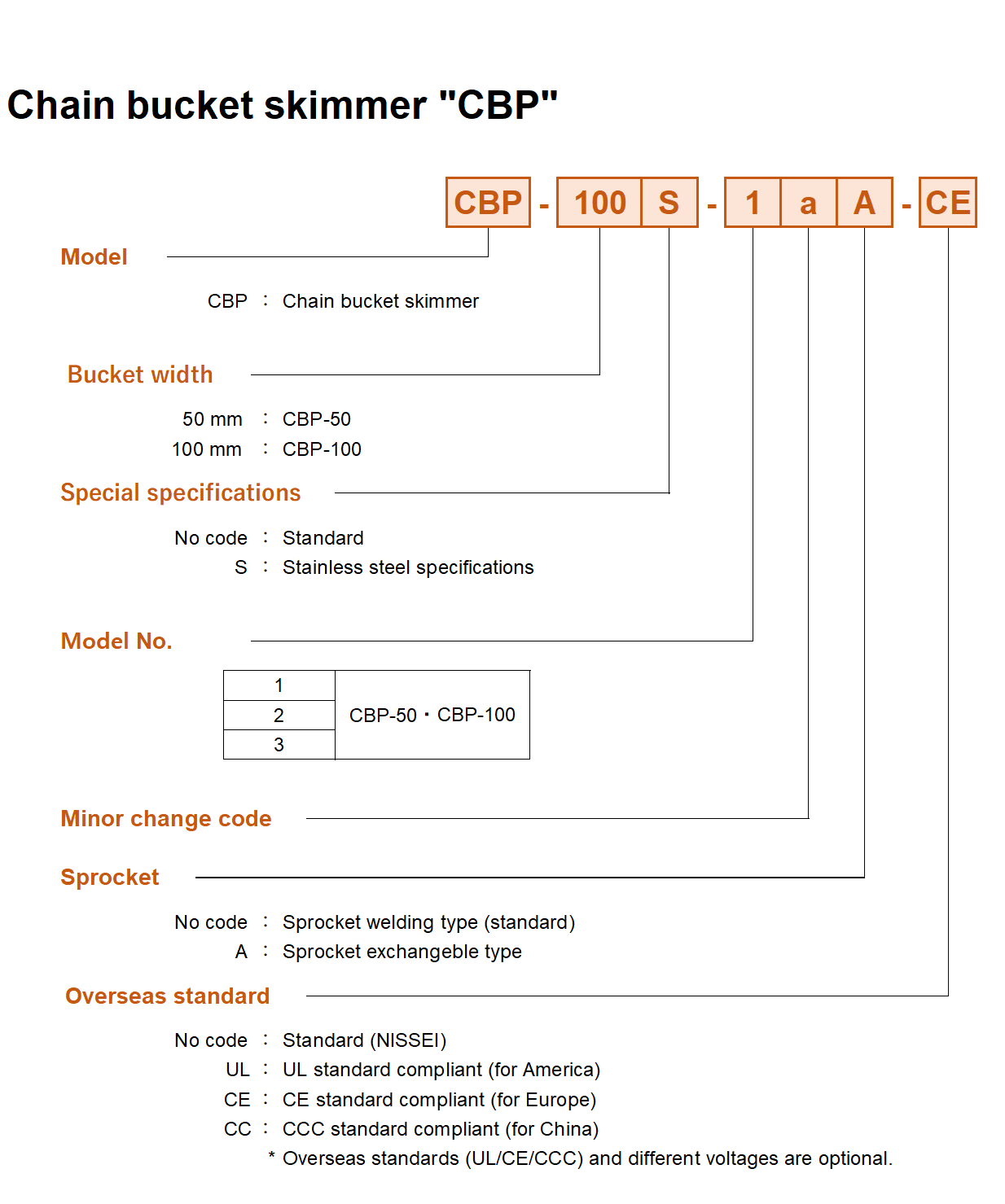

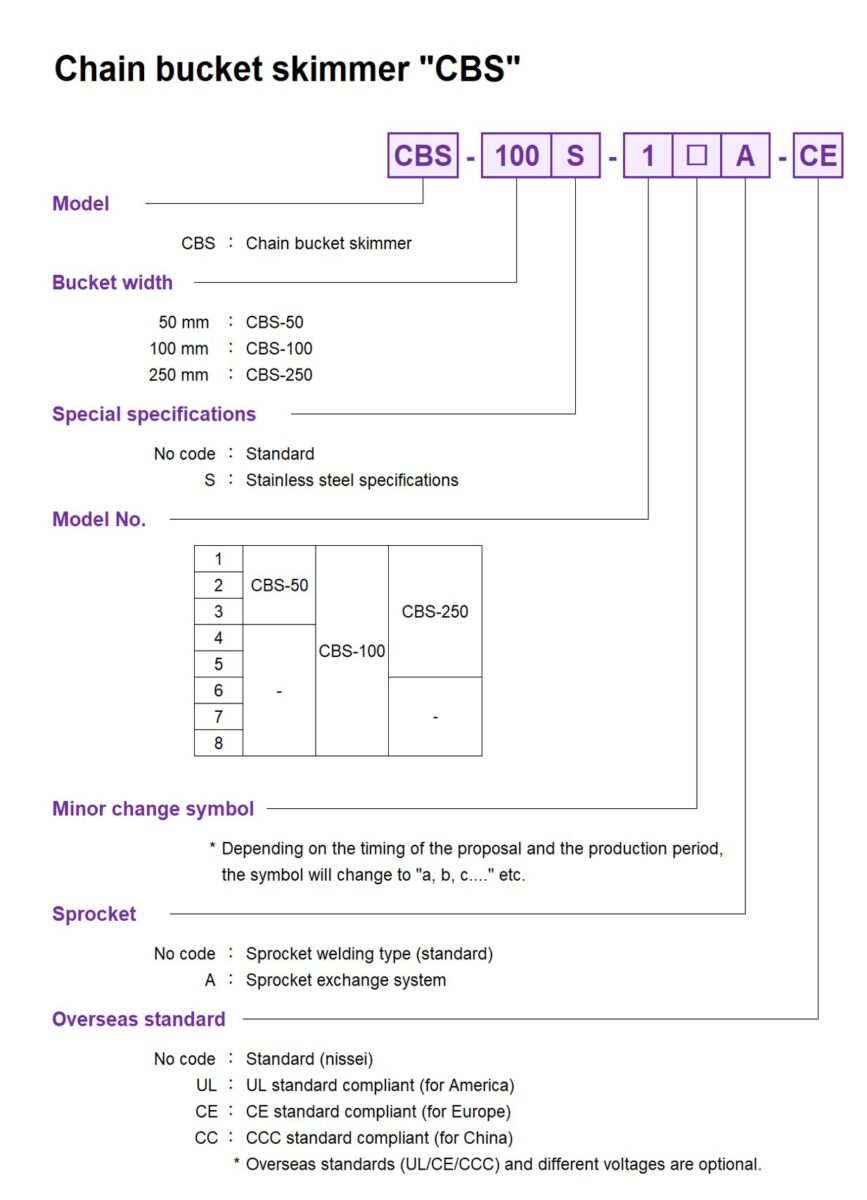

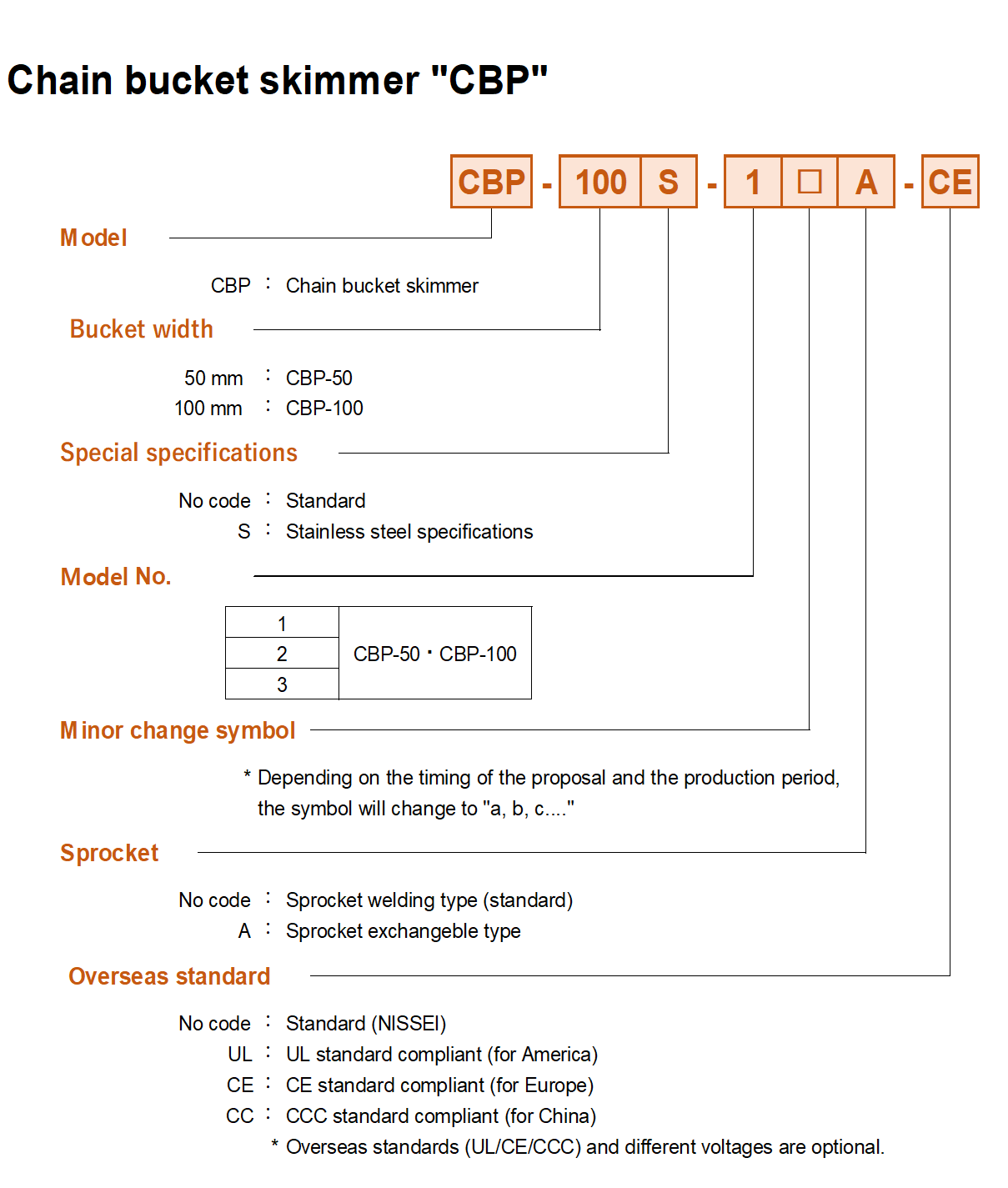

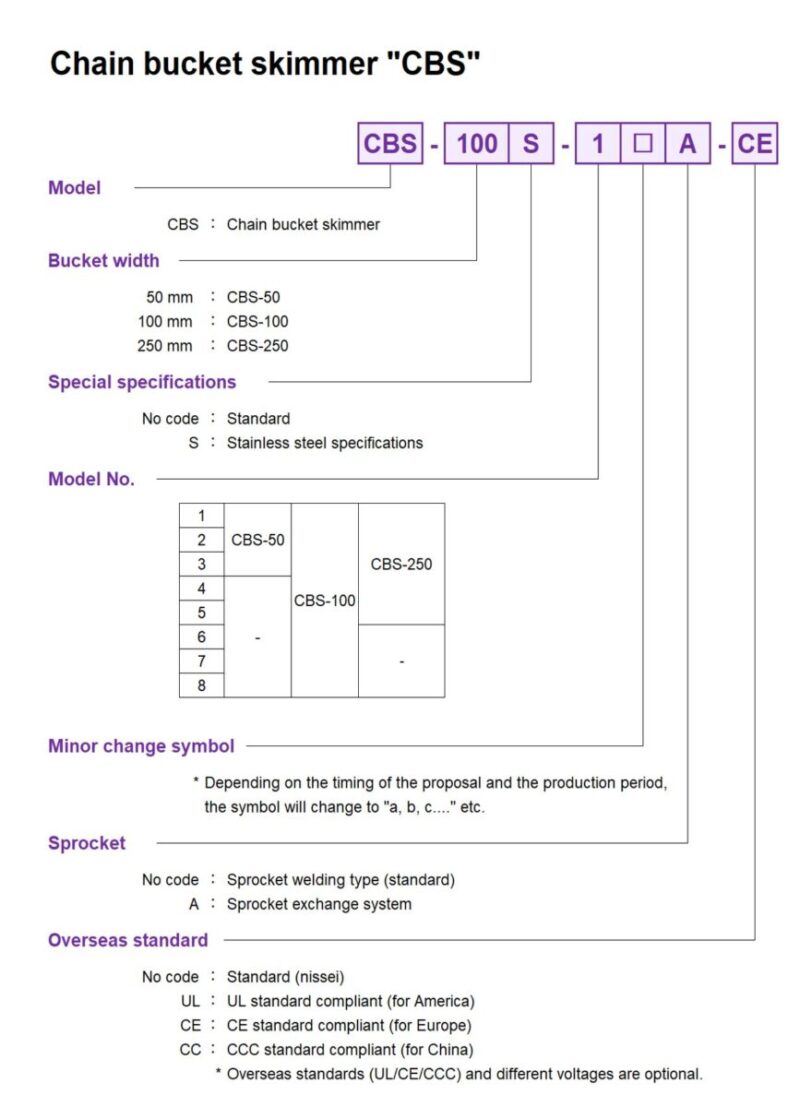

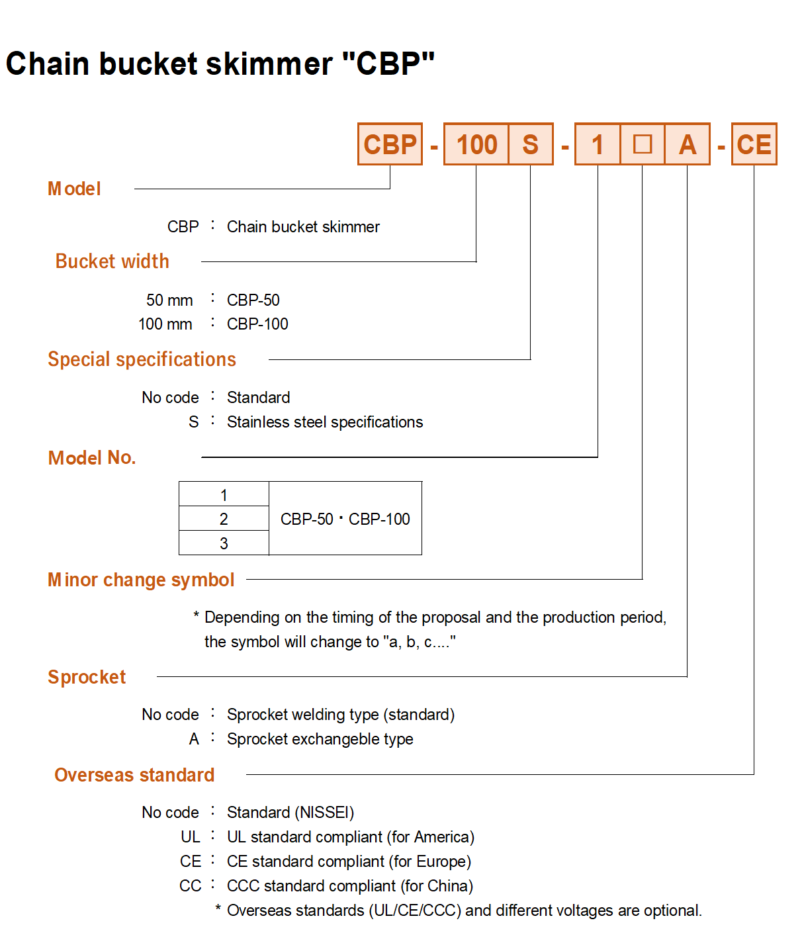

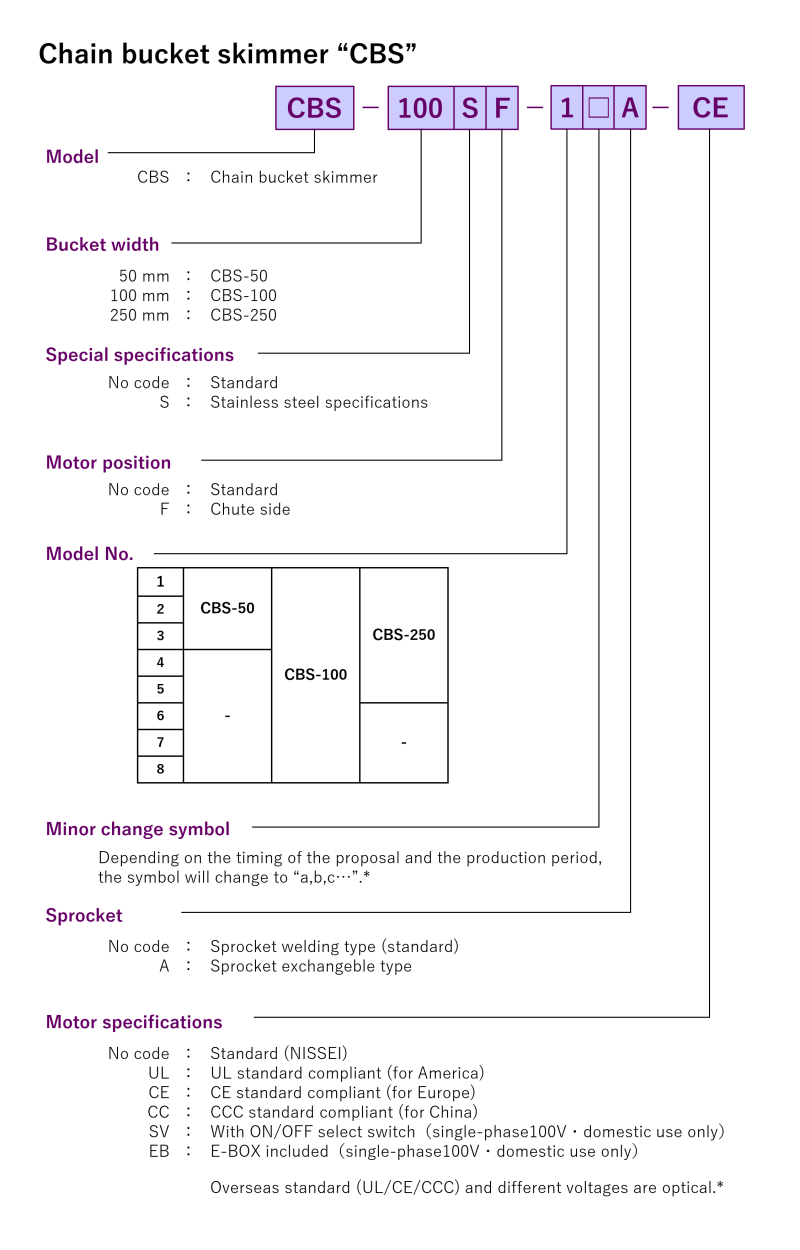

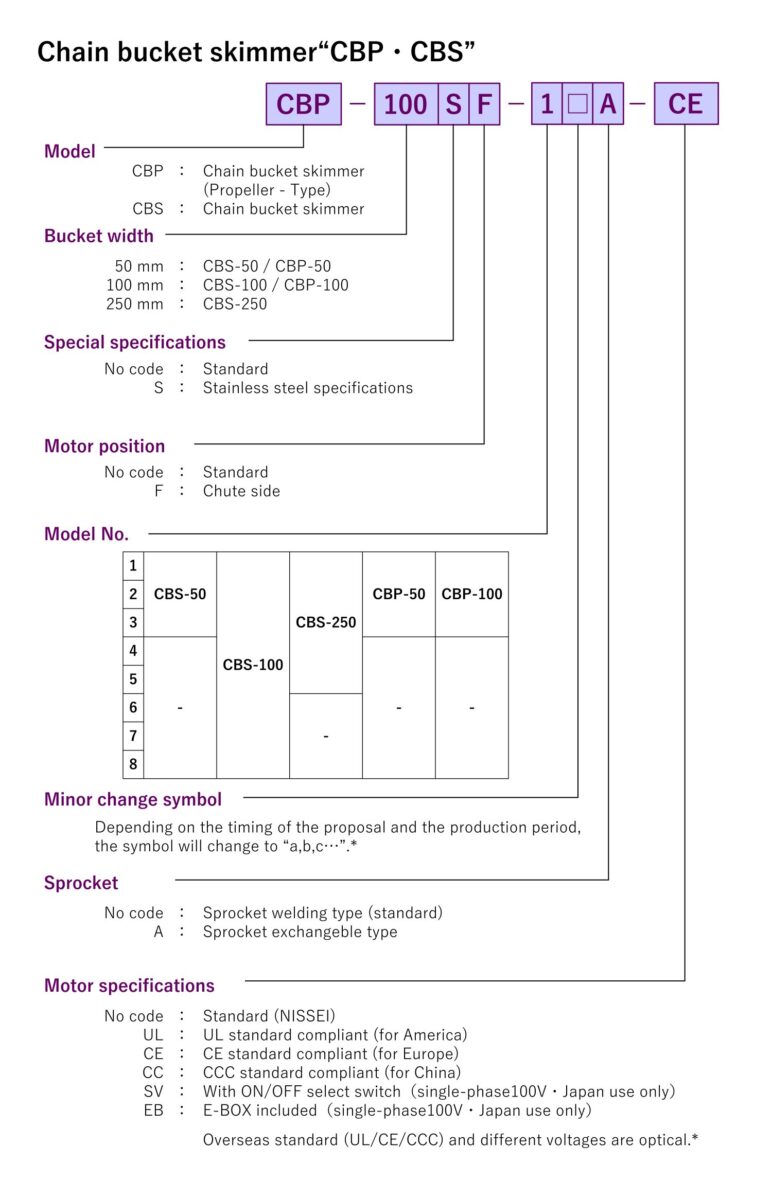

Model code

Product Photo (Example)

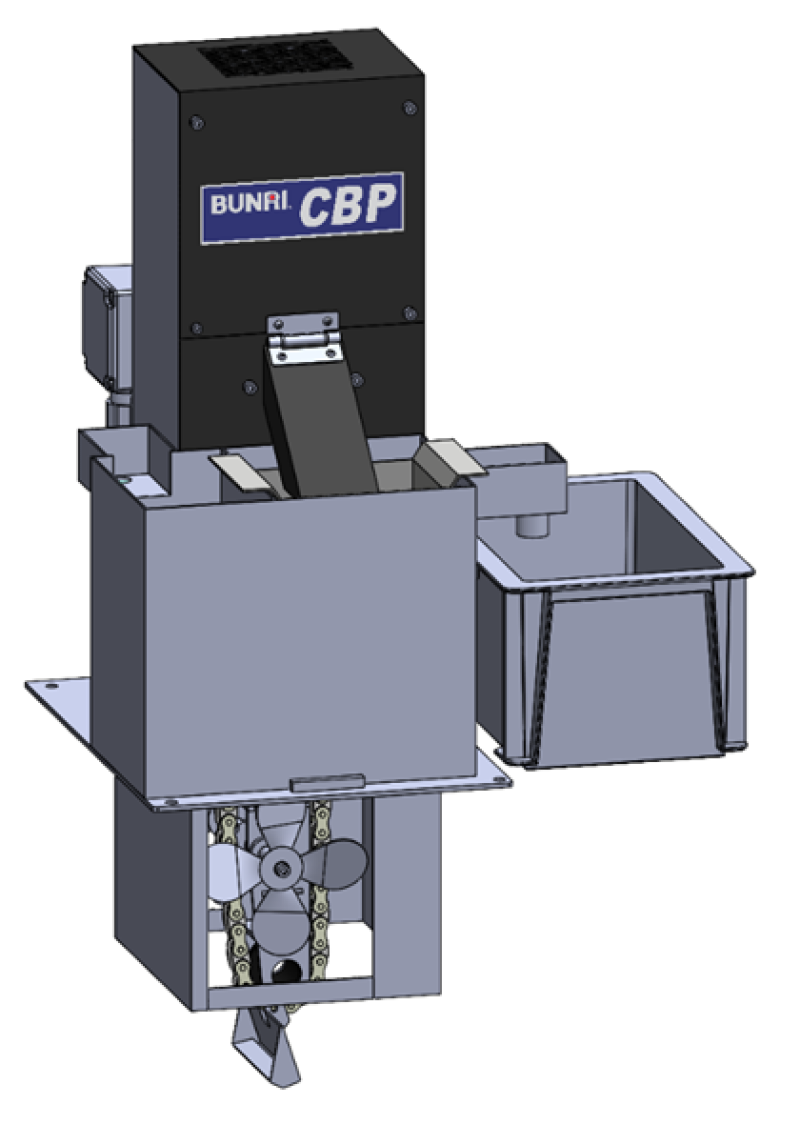

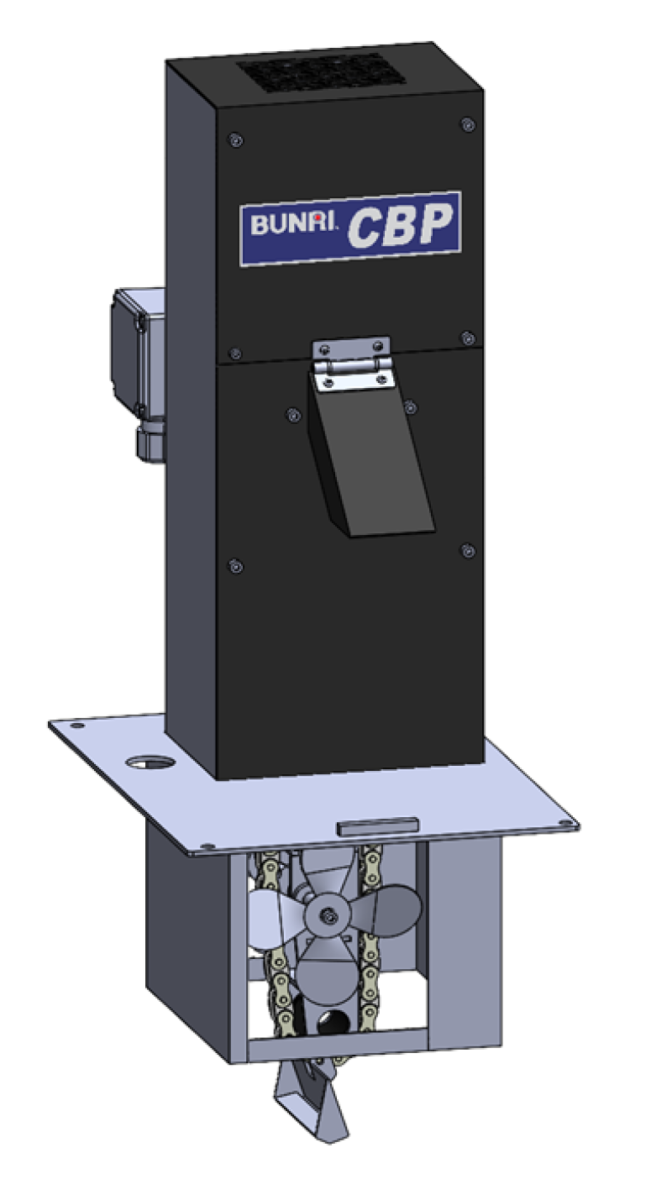

CBP

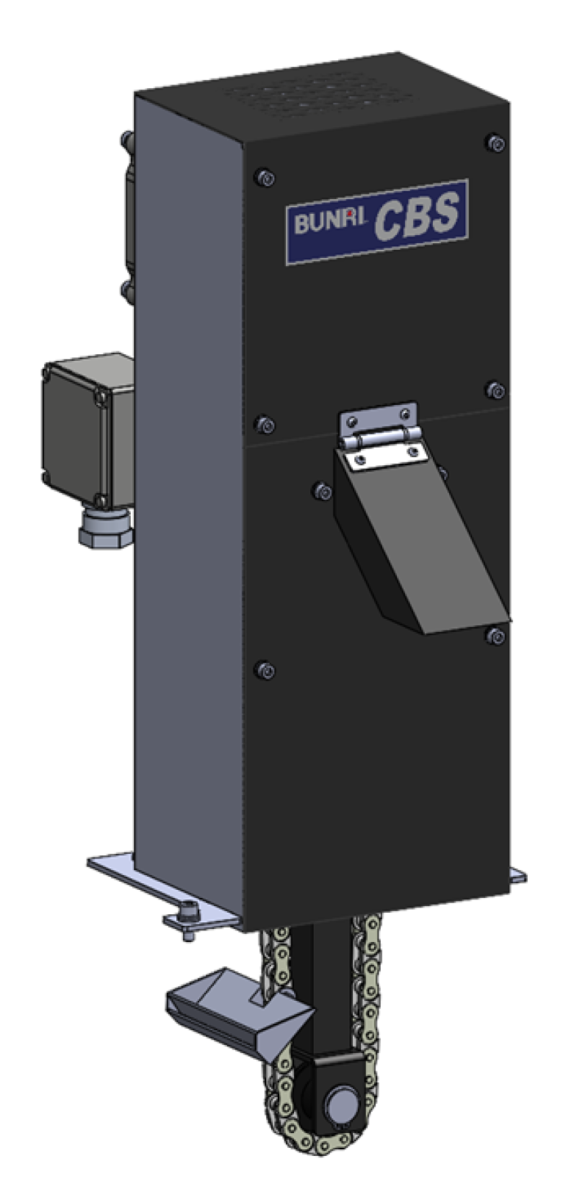

CBS-50

CBS-100

CBS-250

* The recovery capacity is based on the resulting data of our experiments, and it does not imply that this level of capacity is guaranteed.

* This unit is premised on the use of water-soluble coolant. If you want to use this unit for water or cleaning solution, please consult us.

* If you want to heat it or if the liquid temperature exceeds 60°C, please consult us

* The specifications and dimensions are subject to change without notice.

* For information about custom products other than standard products, please consult us.
