Magnetic filter MF
Line filter that uses a magnet as a filter medium to capture cutting chips and grinding sludge of magnetic materials.
The filter medium is a magnet, so there are no consumables and parts replacement is not required.
Features
- This product filters the coolant by creating a strong magnetic field inside the housing.
- Chips and sludge can be captured using a one touch operation.
- The filter medium is a magnet, so no replacement is required.
- This product can be installed on the existing flow line and does not require additional power. Therefore, it does not take time to install and operate.
- This product does not use any consumables such as cartridges or paper filters, so no industrial waste is generated.
- This product can be used both as a line filter and as a suction filter.
| Coolant | Water soluble Oil-based |
|---|---|
| Category | Magnetic material |
| Processing details | Grinding Cutting |
| Work material | FC/FCD Steel Carbide |
| Chip shape | Sandy Cottony Granular Needle-shaped |
| Grinding chip size | Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm) |
| Machine tool | Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine |
Mechanism

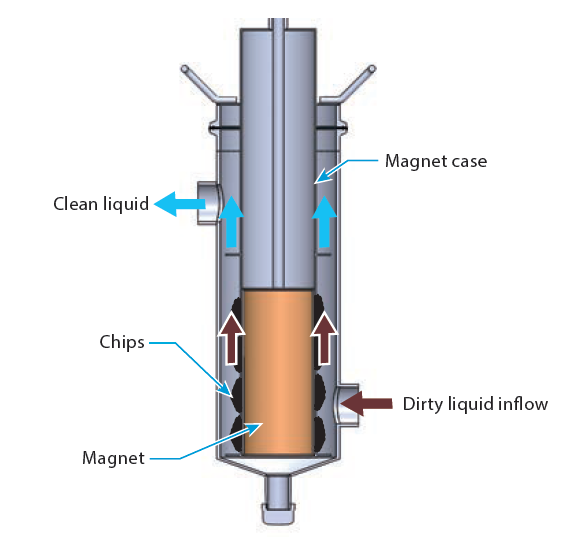

- The dirty liquid pumped by the coolant pump is filtered when passing through the magnet, and the clean liquid is sent from the top of the main body to the outside of the main body.Chips and sludge are captured by the magnet part.

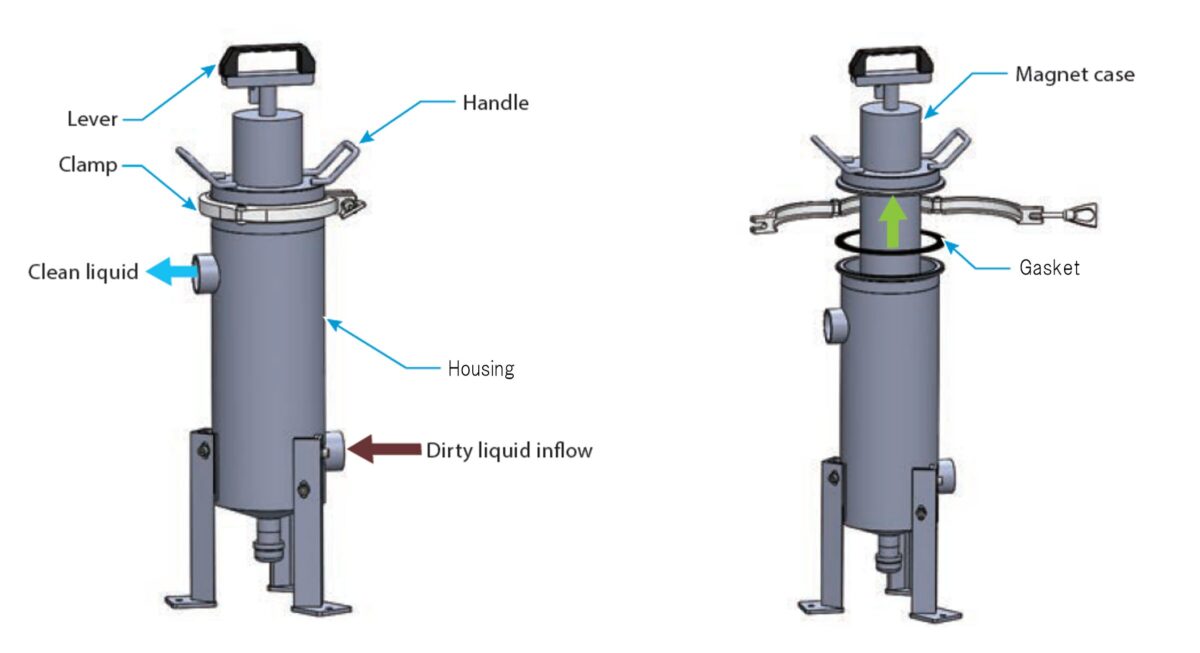

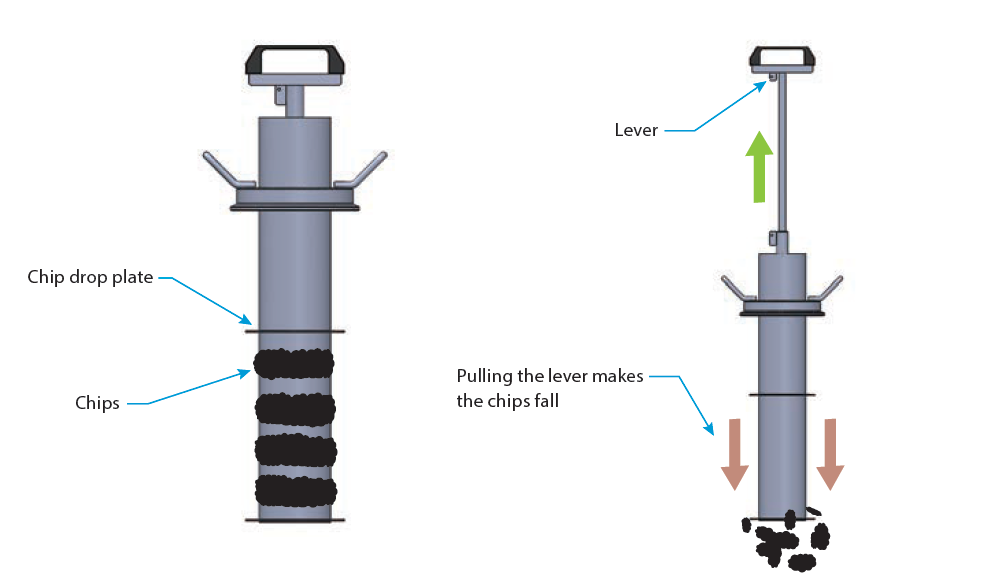

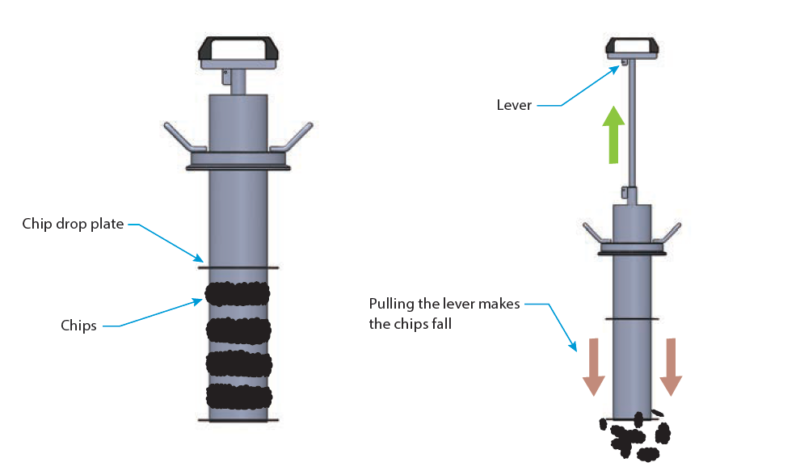

- Chips and sludge are able to be recovered at any time.Remove the clamp and packing, lift the handle, and remove the main body from the case.Sludge falls from the main body when the lever is pulled.
Specifications

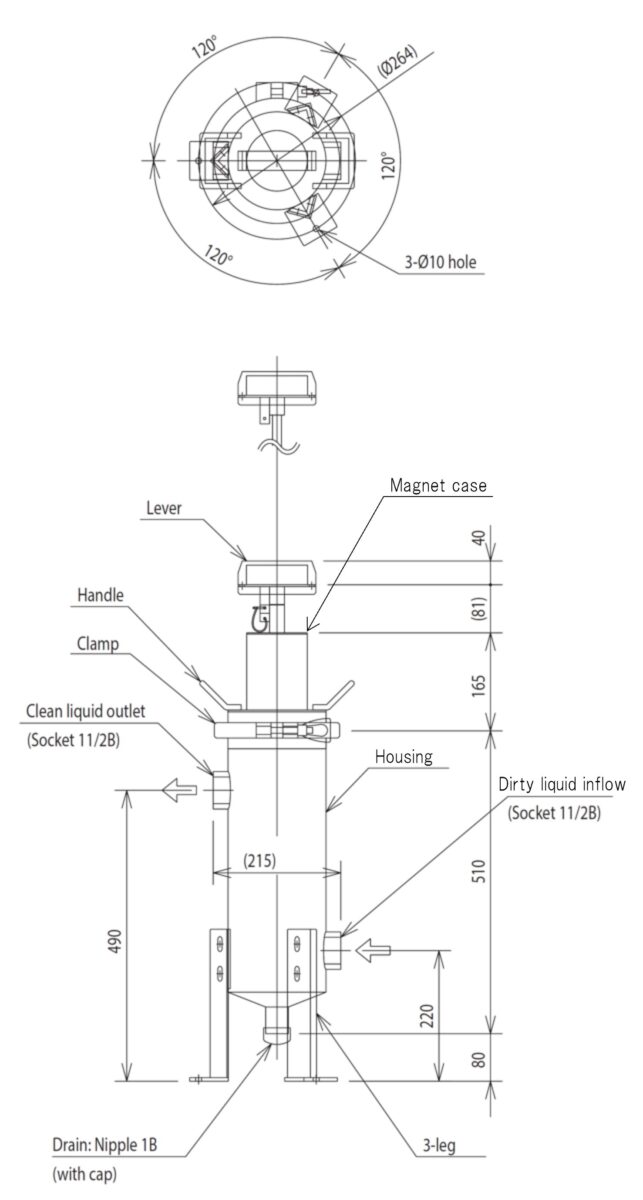

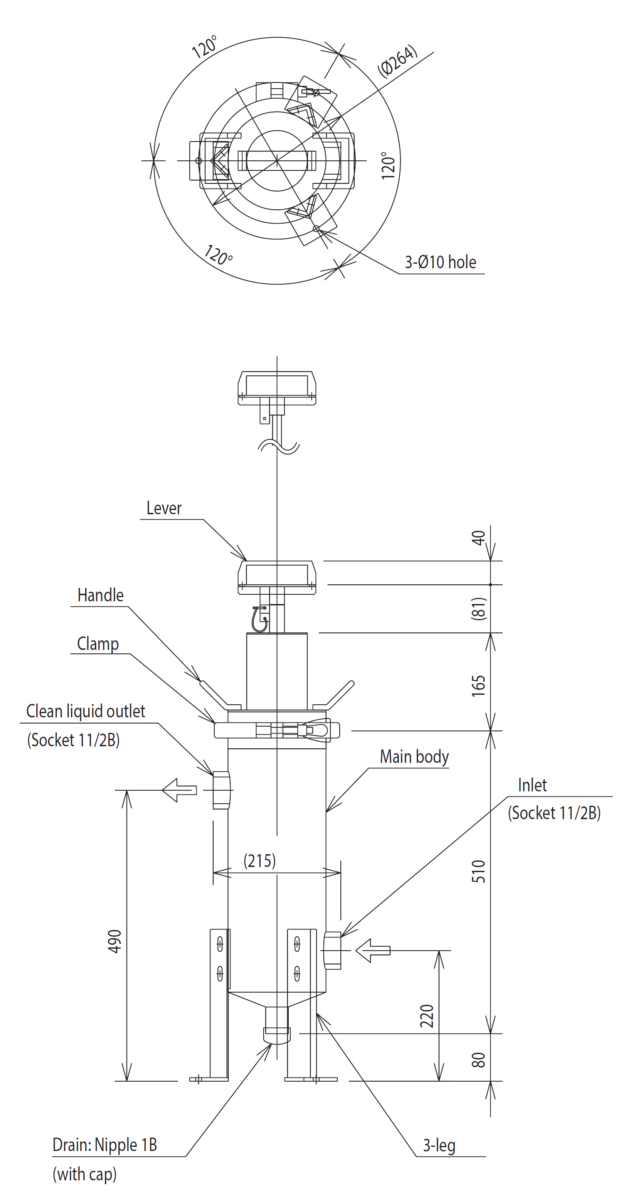

Dimensional drawing
Processing flow rate
Water soluble
- 200 L/min
Product weight
20㎏
Paint color
Silver gray (Munsell No. N-8.0)
* For information about the specified color, please consult us.

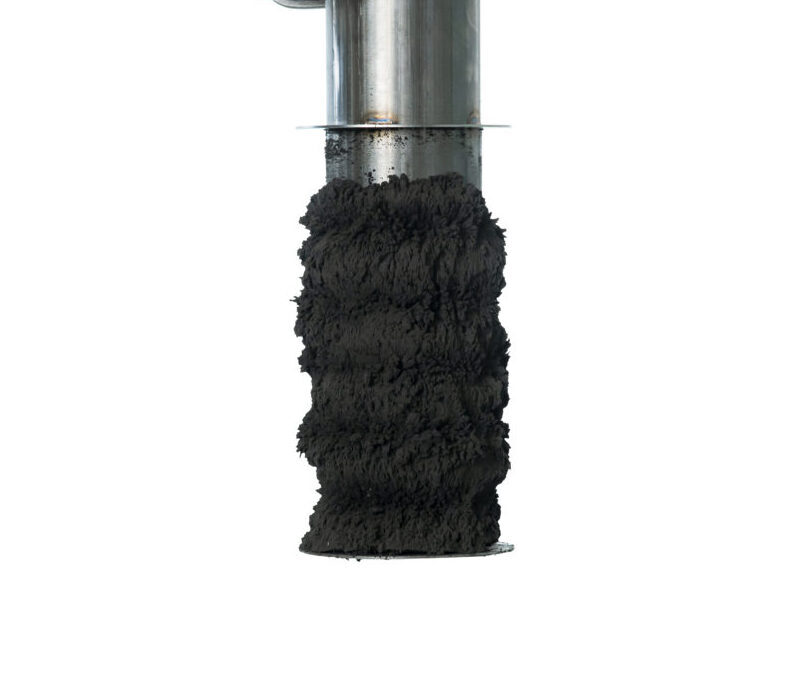

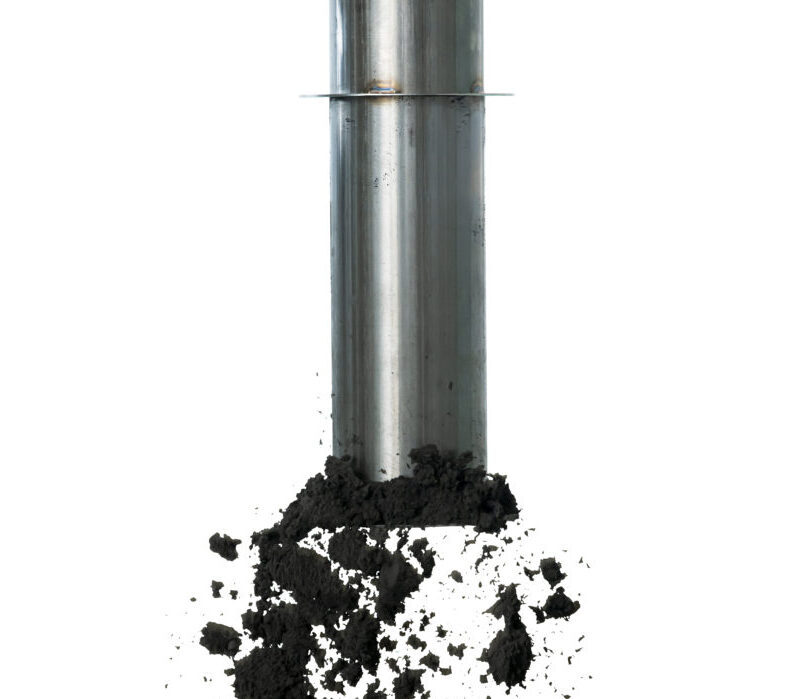

Chip (sludge) recovery image
* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
