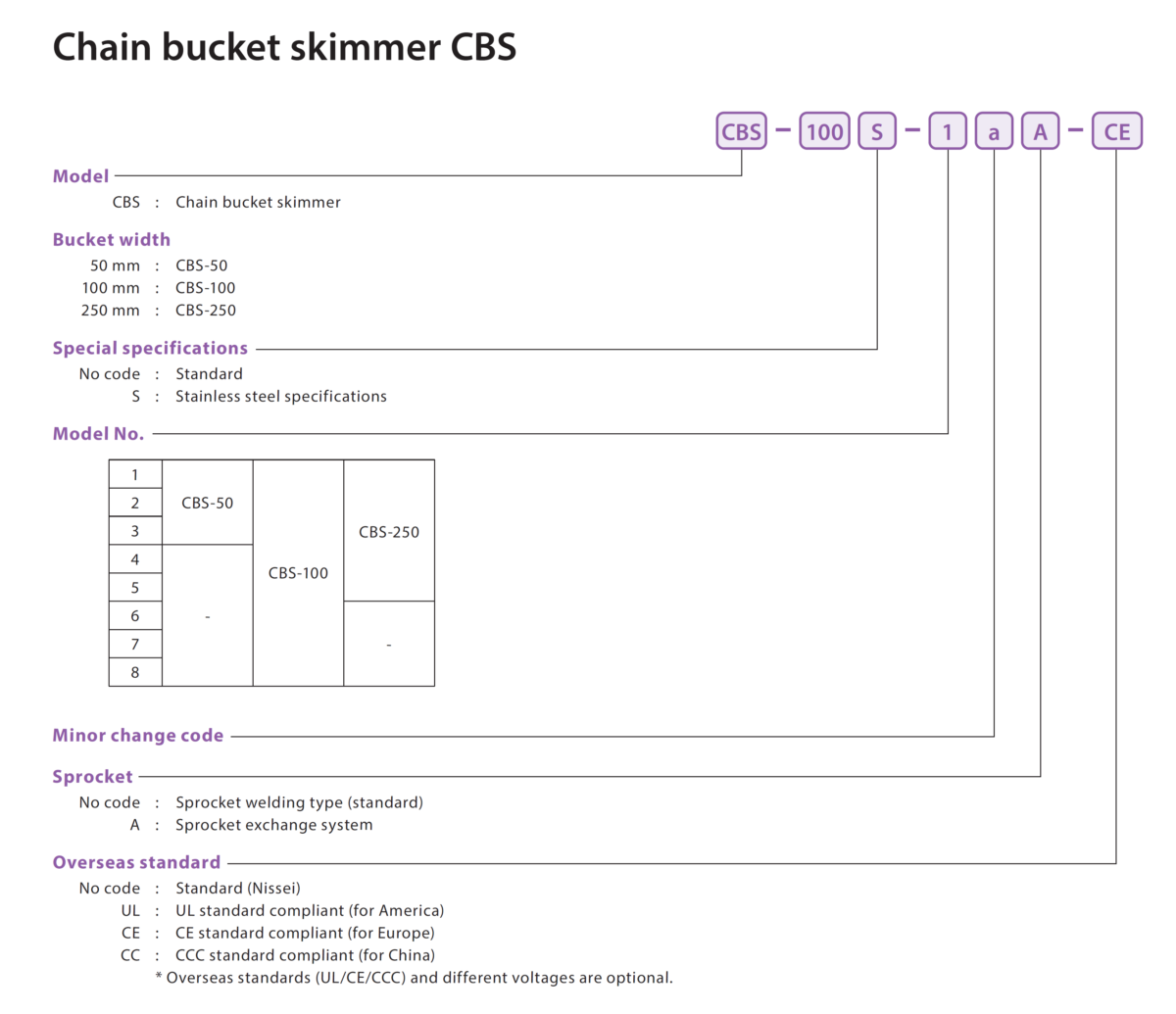

Chain bucket skimmer CBS

Approximately seven times the recovery capacity of the belt system*.
Oil skimmer that uses the unique bucket system.
Optimum for collecting floating oil and scum.
* In-house ratio.

Features

The recovery capacity is about seven times*1 compared to that of the belt system.
*1 In-house ratio.
This unit removes hydraulic oil, lubricating oil, and scum mixed in the water-soluble coolant to prevent liquid spoilage and odors from being generated.
The unique bucket shape efficiently collects floating oil and scum.
This unit is also effective for low-viscosity floating oil and liquid that are heated*2 in the washing machine.
*2 If you want to heat it or if the liquid temperature exceeds 60°C, please consult us.

Coolant	Water soluble
Category	Floating oil, scum
Processing details
Work material
Chip shape
Grinding chip size
Machine tool	Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center #30 Machining center Broaching machine NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Product introduction video

Mechanism

The unique bucket shape collects oil and scum floating on the liquid surface of the coolant.
The collected coolant, oil, and scum are discharged from the chute of the main body to the separation tank.
Coolant is separated from scum/oil in the separation tank using the difference in specific gravity between the coolant and scum/oil. Then, the oil is discharged to the oil box, and the coolant is returned to the tank again.
